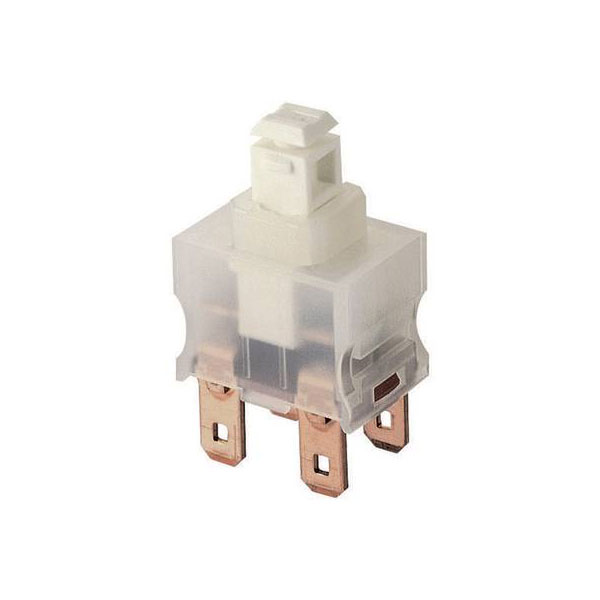

Marquardt 1682.1101 12A IP40 Pushbutton DPST On-Off Faston White 2 Pole Straight

A proven double-lifting contact system from Marquardt with high switching power and high mechanical load capacity.

• Actuating force: 9N
• Additional product specs: Creepage current resistance PTI 250
• Contact opening width ≥ 3mm
• Insulation distance ≥ 8mm
• Flammability: pusher UL 94 V-0 socket UL 94 V-1 housing UL 94 V-2
• Heat and fire resistance 850ºC (category D)
• Test mark: ENEC UL CSA
• Casing/button colour: White
• Connection: CEE plug 4.8mm
• Contact material: Silver
• Contact type: 2 breakers
• L x W x H 19 x 13 x 26.5mm
• Durability: 100,000 switch cycles
• Electrical lifespan: 50,000 switch cycles
• Functions: latch
• Insulation resistance: Min 100 MΩ
• Lighting type: none
• Max. temperature: 100°C
• Min. temperature: -20°C
• Protection type: IP40
• Specification: 2-pole On/Off
• Switch features: protuding
• Switch position: 2 x On/Off
• Switch type: Pushbutton switch
• Switching current (max.): 12A
• Switching voltage: 250V AC
• Manufacturer's part 1682.1101

Note: In the description of switching position, the value in brackets is intended to show the switch function.
