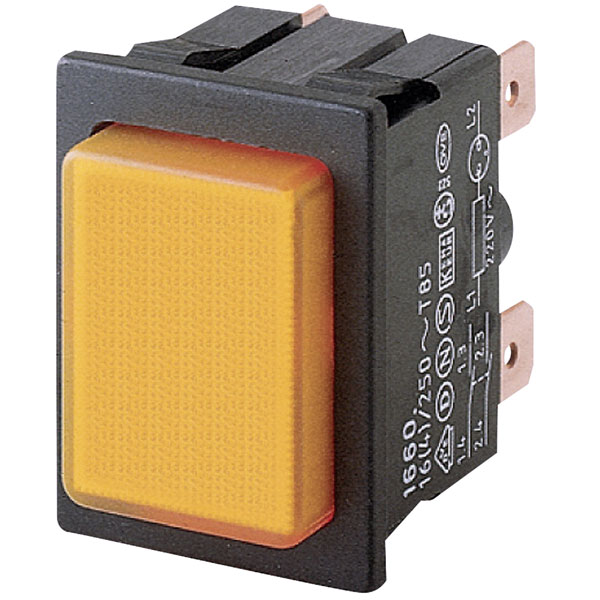

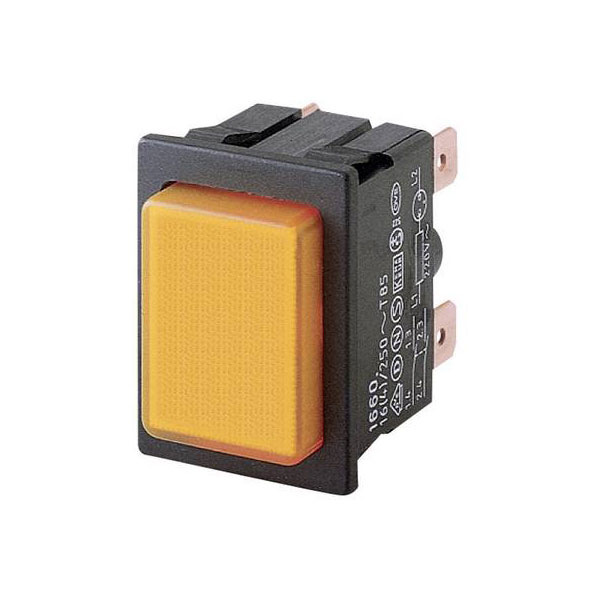

Marquardt 1660.0202 Illuminated Pushbutton 16A IP40 DPST Faston Green

A pressure switch from Marquardt with tried and tested spring contact switch system (double interruption). The opening and/or closing speed is independent of the actuating speed.

• Approvals:: ENEC UL CSA
• Bulb type: Glow lamp
• Casing/button colour: Black
• Connection: Blade terminal 6.3mm
• Contact material: Ag (Silver)
• Contact type: 2 makers
• L x W 25 x 33mm
• Front panel cut-out: 30.4 x 22.2mm
• Functions: latch
• Light colour: Green
• Lighting type: area illumination
• Protection type: IP40
• Recess depth: 30.8mm
• Switch features: protuding
• Switch position: 2 x Off/On
• Switch type: Pushbutton switch
• Switching current (max.): 16A
• Switching voltage: 250V AC
• Manufacturer's part 1660.0202

In the description of switching position, the value in brackets is intended to show the switch function.

Type	Push-button
Contact Configuration	2x off / on
Current Rating	16A
Mounting	Panel
Illumination	Illuminated
Button Colour	Green
IP Rating	IP40
