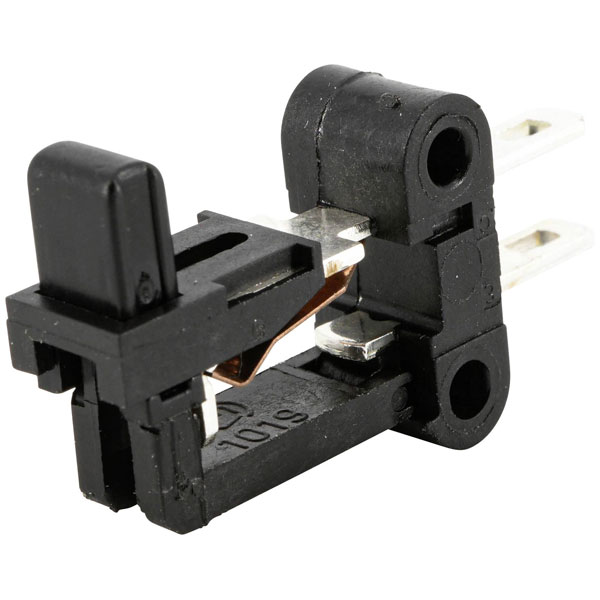

Marquardt 1019.0101 Snap-action switch 250V DC 6A Push Button Switches

Marquardt 1019.0101 snap-action switch is a robust push-button switch designed to operate effectively with a voltage of up to 250 volts DC and a current capacity of 6 amperes. This switch is engineered for precision and durability, featuring a quick response mechanism that makes it suitable for applications requiring rapid actuation, such as in industrial control panels and automation systems. The compact design allows it to be easily integrated into existing equipment while ensuring reliable operation under demanding conditions. This versatility makes it ideal for use in both consumer electronics and heavy-duty machinery where reliable performance is paramount.

Type	1019.0101
Contact Configuration	None
Switch Function	N/A
Current Rating	N/A
Mounting	Panel
Illumination	N/A
Panel Cutout Dimensions	N/A
Actuating Force	3N
Casing/button Colour	Black
Contact Material	Silver
Contact Resistance	100mΩ
Content	1
Dielectric Strength	1500V
Durability	20E4
Lighting Type	None
Max. temperature	85°C
Maximum Temperature	85°C
Min. temperature	-40°C
Minimum Operating Temperature	-40°C
Product Type	Snap-action switch
Switching current (max.)	6A
Switching Voltage	250V DC
