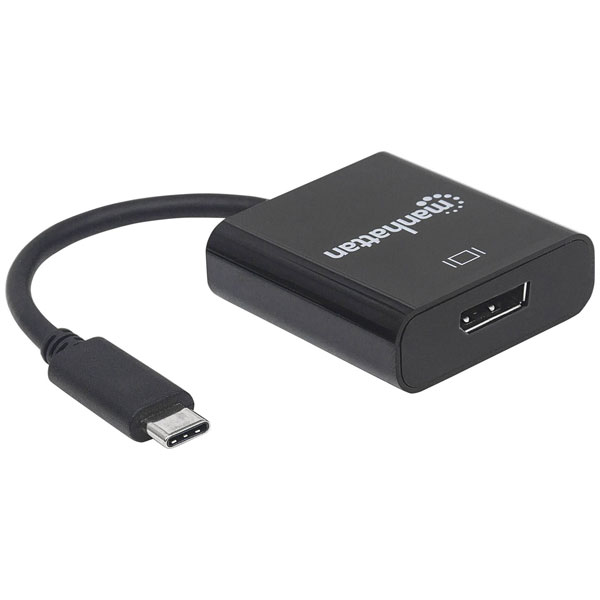

Manhattan 152020 DisplayPort USB Adapter is designed as an efficient solution for connecting USB-C-enabled devices to a DisplayPort-equipped display using a high-quality interface. This adapter includes a USB 3.2 Gen 2 Type-C connector and a DisplayPort socket, providing reliable and high-speed signal transmission. Constructed with a flexible design, its metal foil shielded cable ensures durability and protection against electromagnetic interference, while the UL-approved standards guarantee safety and compliance. The adaptor's duplex use connector and gold-plated contacts contribute to enhanced conductivity and reduced signal loss, serving applications in environments where video and audio fidelity are critical, such as professional workstations and high-definition multimedia setups. Spanning 21.00 cm, this black colour-coded adapter offers convenient connectivity for compact and mobile systems requiring efficient interface bridging.
| Type |
USB Adapter |
| Interface |
USB |
| Colour |
Black |
| No. of A connectors |
1 |
| No. of B connections |
1 |
| Product Type |
TV/monitor Adapter |
| Type A |
USB 3.2 2nd Gen connector C (USB 3.1) |
| Adaptor Type |
TV/monitor Adapter |
| AWG |
32 |
| Cable Design |
Round |
| Cable Length |
21.00cm |
| Cable Use |
TV/monitor |
| Certification |
HDCP 1.4\nCE \nFCC\nRoHS2\nWEEE |
| Compliance certificates |
RoHS |
| Connector A |
USB 3.2 2nd Gen connector C (USB 3.1) |
| Connector B |
DisplayPort socket |
| Connector Version |
pivoted |
| Core Material |
Copper |
| Depth |
45mm |
| DisplayPort output |
Yes |
| DisplayPort version |
DisplayPort 1.3 |
| DVI output |
No |
| Harmonized System (HS) code |
84733020 |
| HDMI output |
No |
| Height |
14.5mm |
| Housing Material |
Acrylonitrile butadiene styrene (ABS) |
| Maximum resolution |
3840 x 2160 pixels |
| Number of displays supported |
1 |
| Operating temperature (T-T) |
0 - 50°C |
| Product colour |
Black |
| Quantity per pack |
1 pc(s) |
| Signal flow direction |
Unidirectional (uni) |
| Storage temperature (T-T) |
-20 - 85°C |
| Type B |
DisplayPort socket |
| USB connector form factor |
Straight |
| USB connector gender |
Male |
| USB connector type |
USB Type-C |
| USB version |
3.2 Gen 1 (3.1 Gen 1) |
| Weight |
23g |
| Width |
43mm |
