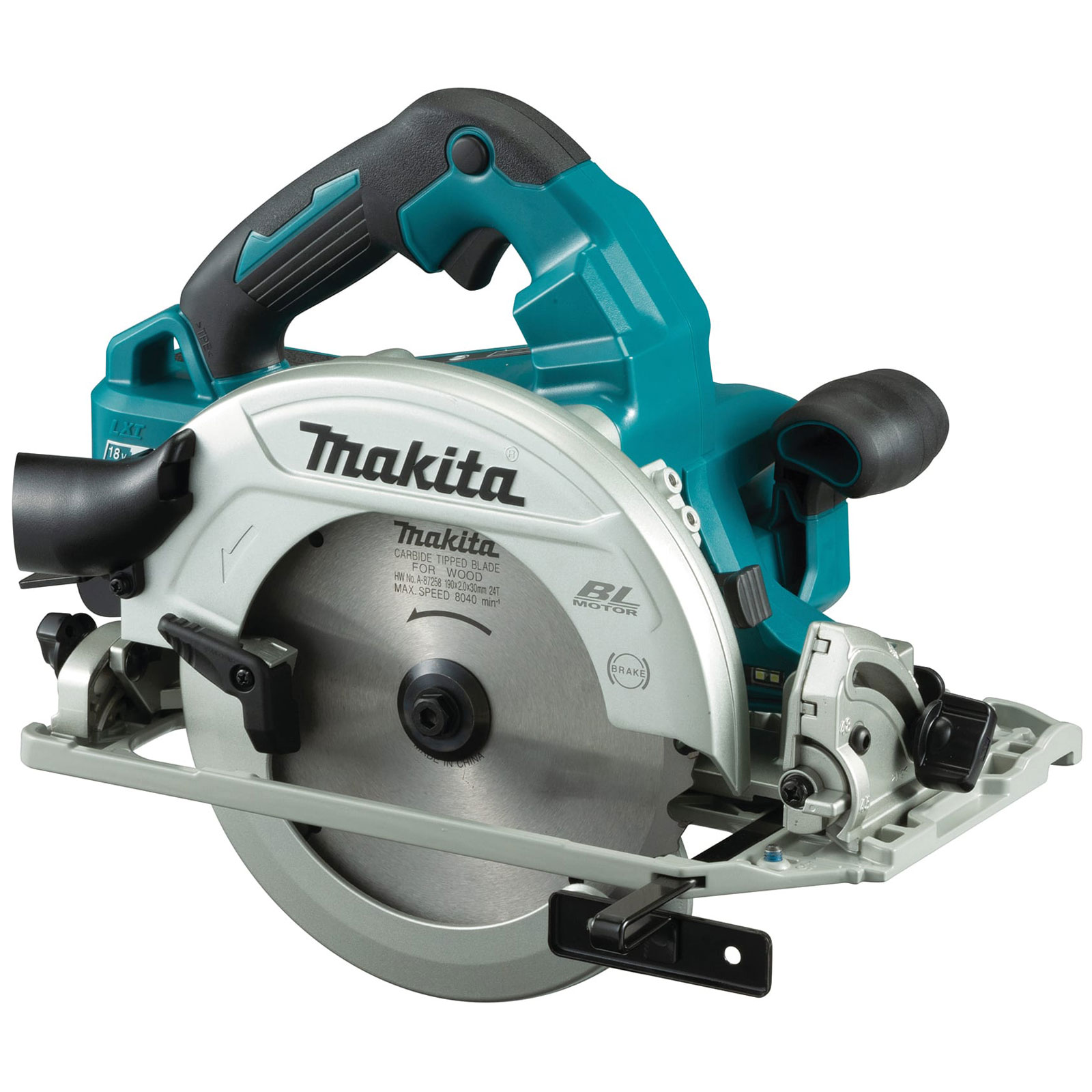

The Makita DHS783 Brushless Circular Saw with Automatic Torque Drive Technology automatically changes the cutting speed according to load condition for optimum operation. It produces a high power, similar to an AC tool. For quick, repetitive cuts there is a positive stop at 45° bevel angle.
Fitted with a magnesium die-cast base plate for increased precision and durability. Its design also provides improved visibility of the blade tip. For added user safety there is an electric brake and overload warning lamp. There is also a handy LED job light, ideal for working in dark areas.
Built-in Auto-Start Wireless System (AWS), this connects to compatible dust extractors with Bluetooth®. The dust extractor automatically runs while the switch is on.
Guide rail compatible, without an adaptor.
Comes as a Bare Unit, No Battery or Charger.
Specifications:
No Load Speed: 6,000/min.
Cutting Depth: @0º: 62.5mm, @45º: 44.5mm, @ 48º: 42mm.
Blade: 190 x 20/30mm bore.
Weight: 4.5kg.
| Blade Diameter |
185 / 190mm |
| Battery Chemistry (Ni-Cd / Ni-MH / Li-ion) |
Li-ion |
| Bore Size (Arbor Diameter) |
20 / 30mm |
| Max. Bevel Range (Right) |
0 - 48 º |
| Max. Cutting Depth at 45° |
44,5 / 43mm |
| Max. Cutting Depth at 48° |
42 / 41mm |
| Max. Cutting Depth at 90° |
60 / 62,5mm |
| No load speed |
6000 min?¹ |
| Noise Uncertainty (K Factor) |
3 dB(A) |
| Nominal Battery Voltage |
2 x 18 V |
| Product Dimensions (L x W x H): |
348 x 210 x 290 mm |
| Sound Power Level (LWA) |
104 dB(A) |
| Sound Pressure Level (LpA) |
96 dB(A) |
| Tool weight with battery |
4.5 - 5.1kg |
| Vacuum cleaner connection Ø in / out |
35 / 40mm |
| Vibration Level, Cutting metal |
= 2,5 m/s² |
| Vibration Level, Cutting Wood |
= 2,5 m/s² |
| Vibration Uncertainty (K Factor), Cutting metal |
1,5 m/s² |
| Vibration Uncertainty (K Factor), Cutting Wood |
1,5 m/s² |
