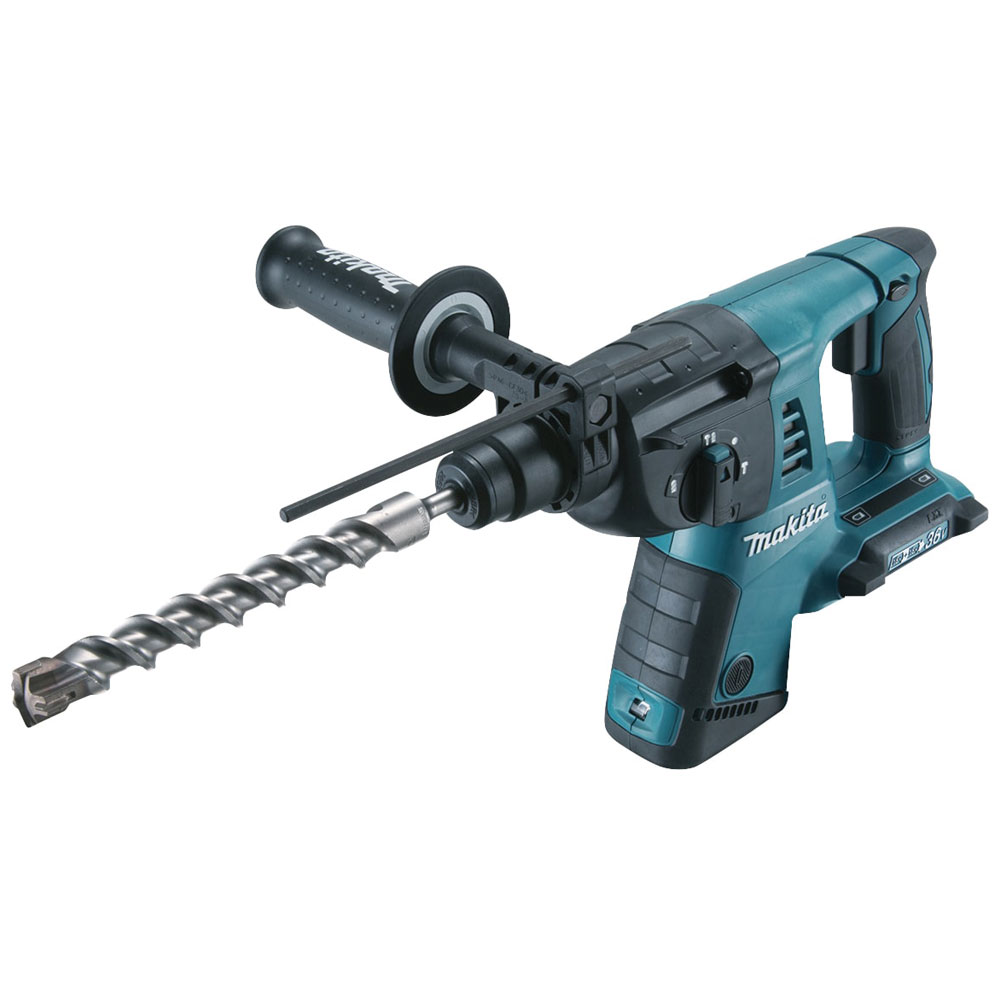

The Makita DHR263Z Rotary SDS Hammer Drill is powered by the 2 x 18V Li-ion batteries in series to supply energy which is equal to a 36V DC motor drive system. Offers 3-modes of operation: rotary only, hammer only and rotary hammer.
It has a compact design which maintains easy handling and high manoeuvrability. Offers 40 different bit-angle settings. It is also fitted with an LED job light offering pre-glow and afterglow functions.
Specifications:
No Load Speed: 0-1,200/min.
Impact Rate: 0-4,800/bpm.
Capacity: Concrete 26mm, Steel 13mm, Wood 32mm.
Weight: 4.7kg.
This Makita DHR263ZJ Rotary SDS Hammer Drill is supplied as a bare unit, NO battery or charger supplied.
| Battery Chemistry (Ni-Cd / Ni-MH / Li-ion) |
Li-ion |
| Drilling diameter with TCT core bit |
54mm |
| Impact Energy |
2,5 J |
| Impacts per Minute (IPM) |
0 - 5000 min?¹ |
| Max. Drilling Diameter in Concrete |
26mm |
| Max. Drilling Diameter in Steel |
13mm |
| Max. Drilling Diameter in Wood |
32mm |
| No load speed |
0 - 1250 min?¹ |
| Noise Uncertainty (K Factor) |
3 dB(A) |
| Nominal Battery Voltage |
2 x 18 V |
| Optimum Drilling Diameter Range in Concrete |
4 - 18mm |
| Product Dimensions (L x W x H): |
350 x 116 x 232 mm |
| Sound Power Level (LWA) |
102 dB(A) |
| Sound Pressure Level (LpA) |
94 dB(A) |
| Tool weight with battery |
3.5 - 4.7kg |
| Vibration Level, Chiselling |
14,3 m/s² |
| Vibration Level, Drilling into metal |
3,0 m/s² |
| Vibration Level, Hammer Drilling Into Concrete |
17,6 m/s² |
| Vibration Uncertainty (K Factor), Chiselling |
1,5 m/s² |
| Vibration Uncertainty (K Factor), Drilling into metal |
1,5 m/s² |
| Vibration Uncertainty (K Factor), Hammer Drilling Into Concrete |
1,8 m/s² |
