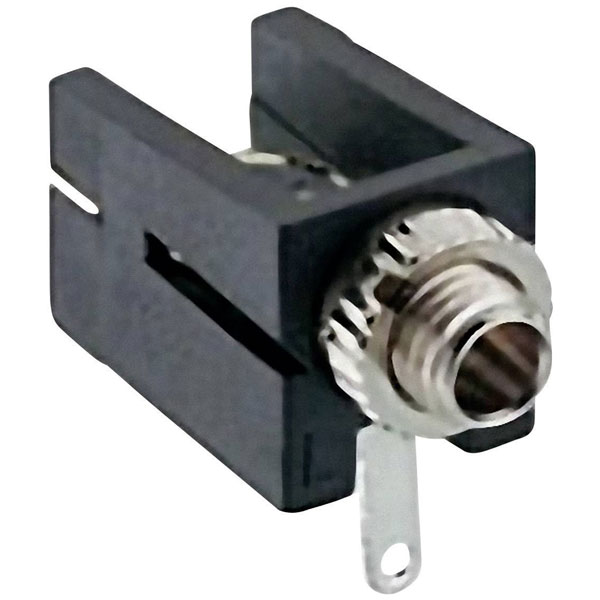

Lumberg 1501 09 Audio Jack Socket 2.5mm Mono 2-Pin Horizontal Mount

Lumberg manufactures the 1501 09 2.5 mm audio jack socket, designed for horizontal mounting with 2 pins for mono audio connections. This black socket is typically used in audio equipment to connect headphones or other audio output devices. It is ideal for compact audio applications requiring a reliable, small footprint jack.

Type	Socket Straight
Plug / Socket	Socket
Size	2.5mm
Colour	Black
Mounting Type	Chassis
Audio channels	Mono
Connection	Soldering
Contact Plating	CuZn
Mating cycles	≥ 5 000
Nominal Current	0.5A
Nominal Voltage	16V DC
Number of pins	2
Number of Poles	2
Recess diameter (details)	3.30mm
Switch contact	Opening contact
Temperature Range	-20 - +70°C
Termination	Solder
