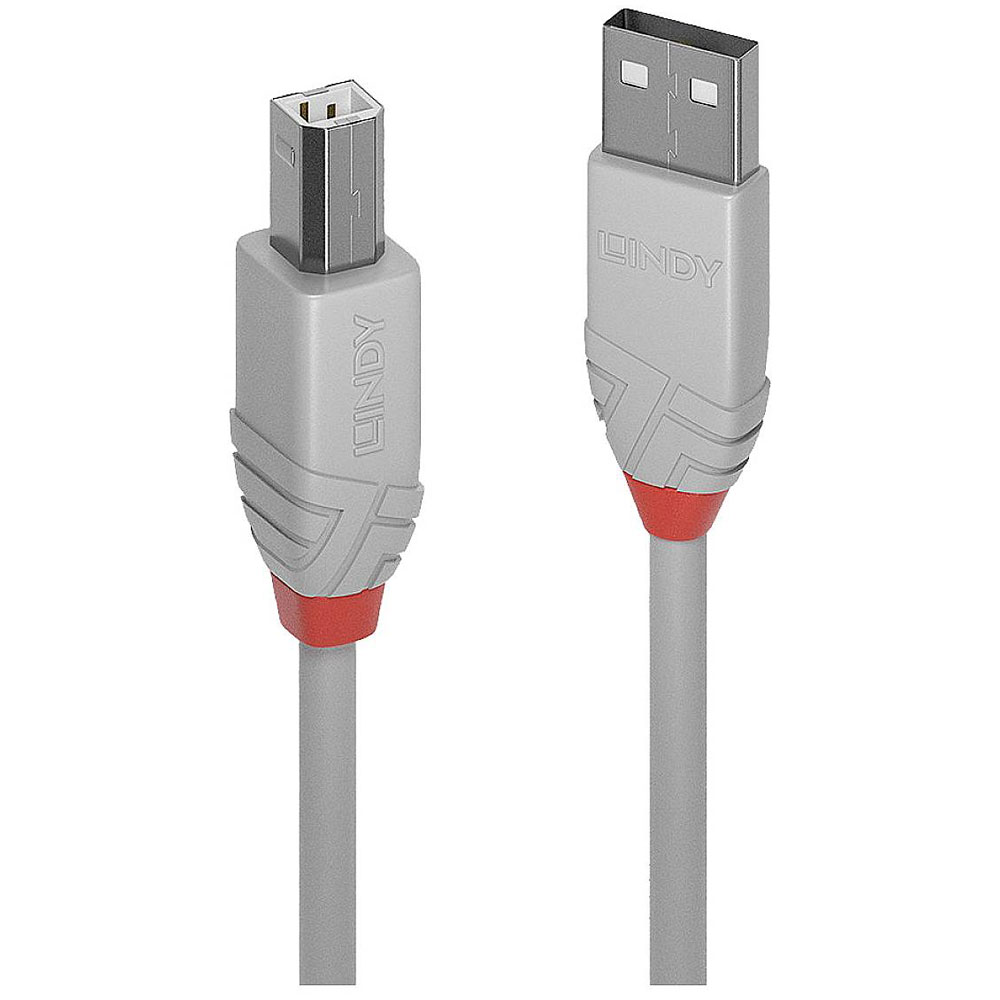

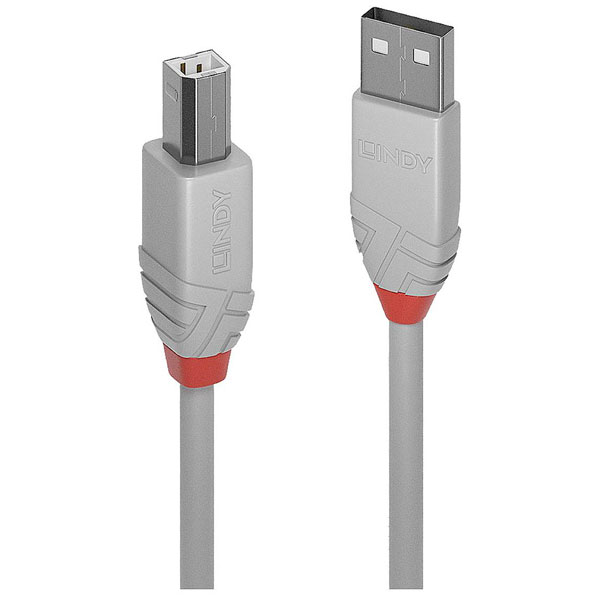

LINDY 36682 USB cable USB 2.0 USB-A to USB-B Grey 1m

LINDY 36682 is a USB 2.0 cable assembly that features a USB-A plug to USB-B plug configuration, presented in a grey colour and a length of 1 metre. This cable is engineered to provide a reliable connection between host devices equipped with USB-A ports and peripherals such as printers, scanners, or external storage devices that utilise USB-B ports. Designed with a robust construction, the cable ensures stable data transmission with a maximum data transfer rate of 480 Mbps, conforming to USB 2.0 specifications. Its versatility makes it suitable for use in various engineering environments where USB 2.0 connectivity is required, facilitating seamless communication between compatible devices.

Cable Length	1.00m
Connector 1	USB 2.0 A
Connector 2	USB B
Colour	Grey
Type	USB 2.0
AWG	26/28
AWG wire size	26/28
Bend radius (min)	1.6 cm
Cable Design	Round
Cable Diameter	4.4 mm
Cable jacket material	Polyvinyl chloride (PVC)
Cable Type	USB 2.0
Certification	RoHS, REACH, UL
Conductor Material	Tinned copper
Connector 1 dimensions (WxDxH)	15.5 x 35 x 7.8 mm
Connector 1 form factor	Straight
Connector 1 gender	Male
Connector 2 dimensions (WxDxH)	11.8 x 35 x 10.2 mm
Connector 2 form factor	Straight
Connector 2 gender	Male
Connector contacts plating	Gold
Connector housing material	Polyvinyl chloride (PVC)
Connector material	Nickel
Connector shield material	Aluminium
Connector shielding	Yes
Connector Version	straight
Contact Material	Copper
Core Material	Tin plated copper
Harmonized System (HS) code	84733080
Maximum data transfer rate	0.48 Gbit/s
Nominal attenuation	5.8db/km
Operating temperature (T-T)	0 - 80 °C
Package type	Polybag
Product colour	Grey
Product Type	USB cable
Quantity per pack	1 pc(s)
Storage temperature (T-T)	0 - 60 °C
Transfer Rate (max.)	480 MBit/s
USB version	USB 2.0
