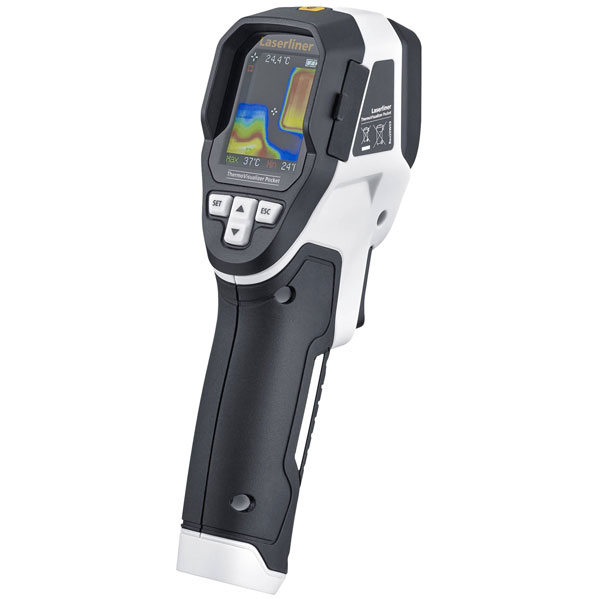

Laserliner 082.074A ThermoVisualizer Pocket IR Camera -20 to +650 °C

The Laserliner ThermoVisualizer Pocket IR camera, model 082.074A, is a compact thermal imaging device capable of measuring temperatures from -20 to +650 °C. It features a 9 Hz refresh rate, making it ideal for quick and easy thermal diagnostics. Typical applications include identifying heat loss, detecting electrical faults, and assessing mechanical systems.

Type	IR camera
Resolution	128 x 160 Pixel
Accuracy ±	3°C
Basic Accuracy	3%
Connection	USB
Dimensions	(L x W x H) 46 x 70 x 180 mm
Display Size	1.8" TFT color display
Frame rate	9Hz
Height	180mm
IP Rating	IP54
Length	46mm
Misc Attribute	ThermoVisualizer Pocket
Optics	33°
Power supply (details)	4x 1.5V LR03 (AAA)
Temperature Measurement Range	-20 to 650°C
Temperature reading range (max.)	+650°C
Temperature reading range (min.)	-20°C
Thermal Sensitivity	150 mK
Weight	175g
Width	70mm
