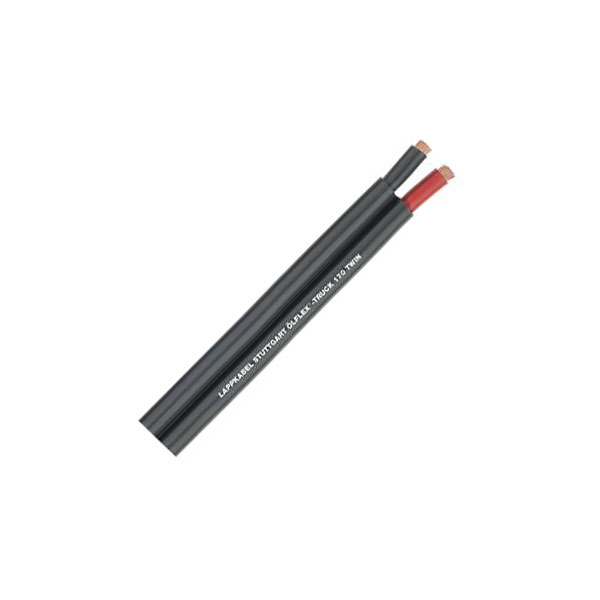

LAPP 7027056 TRUCK 170 TWIN Battery Lead ADR/GGVS Approved Black 2x10.0mm

This LAPP OILFLEX® TRUCK TWIN Cable is reinforced and used as a battery charging lead for hydraulic platforms and commercial vehicles. Polarity identification is possible without stripping the sheath as the item description is always printed on the positive pole.

The cable has been manufactured from strands of copper wire with an inner core and outer sheath based on a PVC compound.

• ADR/GGVS Approbation
• Cable core colours: Black/red
• Colour-coded: Yes
• Cross-section (per pole/core): 10mm²
• Halogen-free: No
• No. of cores: 2
• Outside diameter: 18.8 x 8.9mm
• Shielded: No
• Sold per metre: Yes
• Standards/test marks: für 170 Twin: ADR/GGVS TÜ.EGG.091-04
• Wire ID code: BL/RD
• Temperature range: -40°C to +85°C
• Type: OILFLEX® TRUCK TWIN
• Supplied in black
• Supplied size: 2x 10.0mm²
• Manufacturer's part: LAPP 7027056

This cable will be supplied in one continuous length, subject to the maximum reel size. For example, an order for 7 metres of cable will result in a single 7-metre cable being supplied, not 7 one-metre lengths.

Colour	Blue & Red
Conductor Cross Sectional	10.0mm²
Insulation Material	Polyvinyl chloride
Type	Battery
Length	Sold Per Metre
Number of Cores	2
Sold by Metre	Yes
Standards/Test Marks	ADR / GGVS
