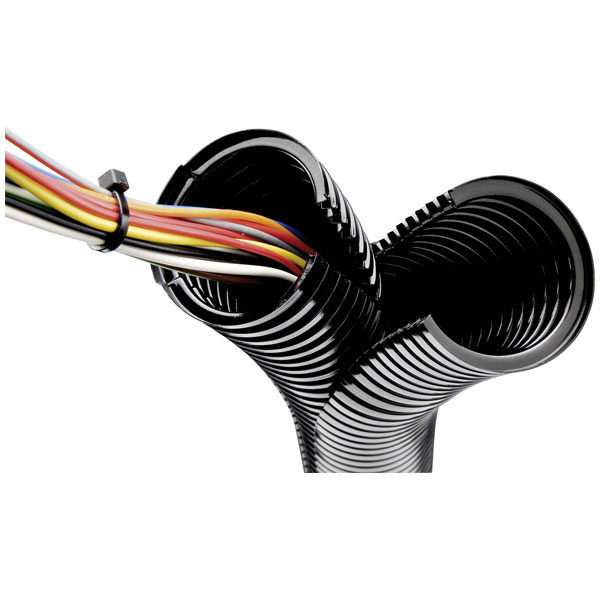

LAPP 61806650 Split conduit black 23.70mm dividable polyamide hose

This dividable polyamide protective hose is used anywhere that, as well as physical and chemical property requirements, the facility to perform problem-free retrofitting or re-working is required. Simply open the system, place the cables in the inner hose, then close the slot by clipping on the outer hose. When used together with the hose screw joint SILVYN SPLIT COV, protection class IP43 is achieved, a high level for divisible hoses.

Type	Conduit
Colour	Black
Length	Sold perm
Material	Polyamide
Internal Diameter	31.30mm
Bend radius	125mm
Max. length sold by the metre	50m
Maximum Temperature	+120°C
Min. temperature	-40°C
Misc Attribute 1	SILVYN® SPLIT 23
Misc Attribute 2	SPLIT 23
Temperature Range	-40 - + 120°C
