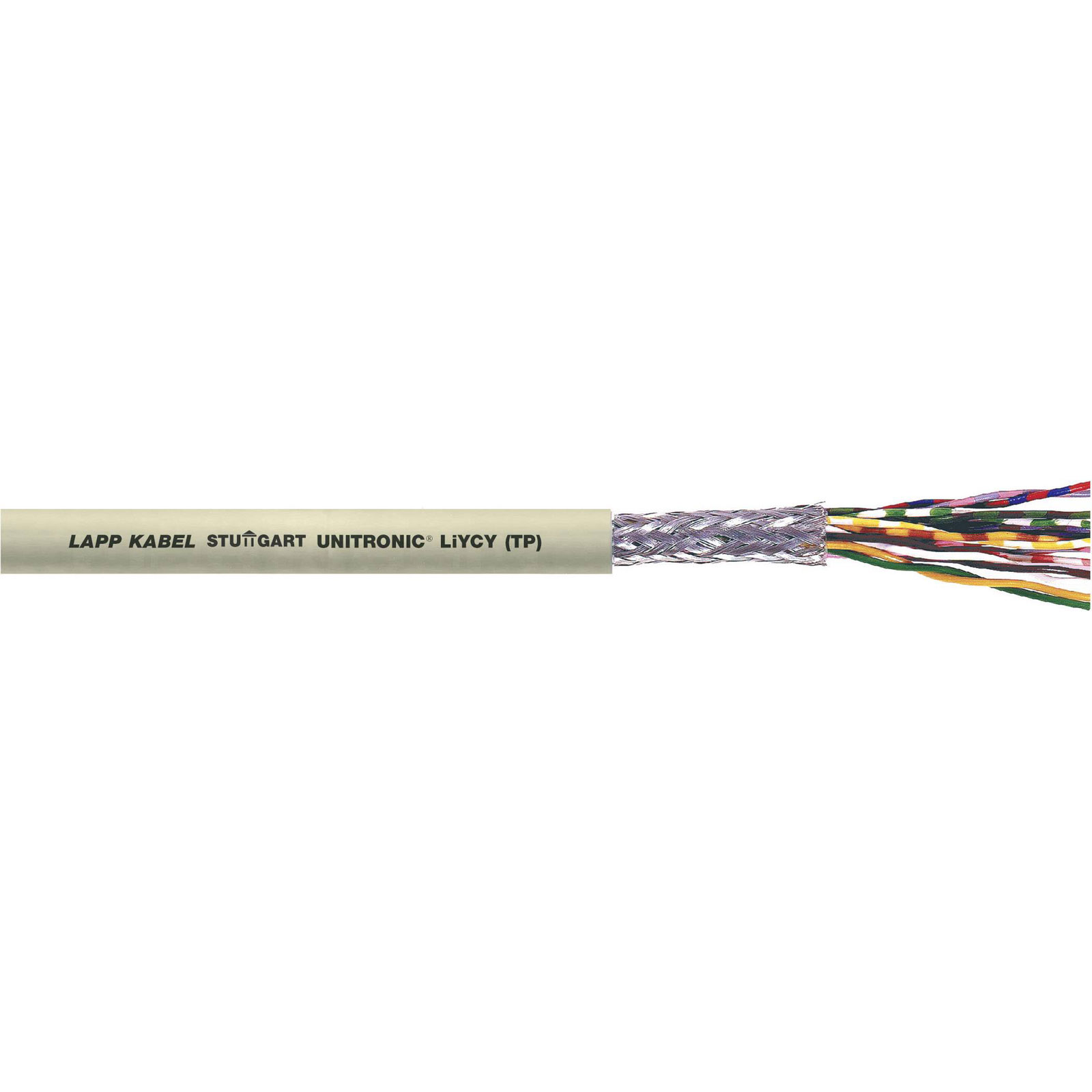

LAPP 35820/100 liYcY TP data cable 2x2x0.75mm² Grey 100m

LAPP
Order Code:

67-6169

Brand: LAPP MPN: 35820/100 EAN-13: 4044774717630
Qty Unit Price (Ex VAT)
1+ £175.97
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

These shielded data cables are used as electronic control and signal lines for computer systems and monitoring devices, office machines, scales etc. The insulation is made of special PVC with a hard outer sheath which protects against wear while remaining flexible and allowing small cable diameters. The additional shielding ensures secure data transmission and protects against interference.
Colour Grey
Type Low Interference Cable
Bend radius (no. of ODs for fixed installation) 6
Bend radius (no. of ODs for flexible installation) 15
Cable Diameter 8.50mm
Certification marks {DIN} VDE following; VDE 0814 (DIN 47414) or VDE 0812.
Conductor Cross-section 0.75mm²
Core layout Finely stranded
Halogen-free No
Insulation Material PVC
Max. temperature range (flexible installation) +70°C
Min. temperature range (fixed installation) -40°C
Min. temperature range (flexible installation) -5°C
Misc Attribute UNITRONIC LIYCY (TP) 2X2X0,75
Nominal Voltage 50V
Number of leads 4
Packaged Yes
Shielded Yes
Sold by Metre No
Twisted pair cabling (part 1) Yes (1)
Wire ID code DIN 47100
