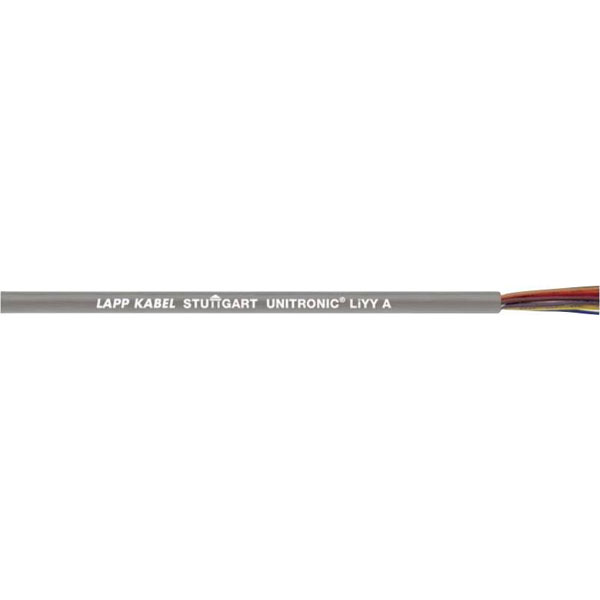

LAPP 22404/1 LiYY data cable 4 x 0.14 mm² grey sold per metre

LAPP
Order Code:

67-5764

Brand: LAPP MPN: 22404/1 EAN-13: 2050000203053
Qty Unit Price (Ex VAT)
10+ £0.465
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
208 in stock, despatched in 4 working days

UNITRONIC® LIYCY UL/CSA cables are largely similar to the UNITRONIC® LIYCY cables but the sheath colour is dark grey (chrome). Because of the UL/CSA approval, the cable is used for wiring appliances, machinery and plant which are intended for export into the North American market.
Sheath Colour Grey
AWG 26
Bend radius For flexible use: 15 x external dia.
Bend radius (no. of ODs for fixed installation) 6
Bend radius (no. of ODs for flexible installation) 15
Cable features Flame-retardant
Certification marks VDE 0815
Core layout 7-strand
Cross section (each core) 0.14mm²
Halogen-free No
Insulation material PVC
Max. length sold by the metre 305m
Max. temperature range (flexible installation) +70°C
Min. temperature range (fixed installation) -40°C
Min. temperature range (flexible installation) -5°C
Misc Attribute 1 UNITRONIC® LiYY UL/CSA DIN
Misc Attribute 2 UNITRONIC® LiYY A
No. of leads 4
Nominal voltage (details) 300V
Outside Ø 5.90mm
Packaged No
Peak operating voltage 250 V (not for heavy current applications)
Shielded No
Sold by Metre Yes
Type Data Cable
Wire ID code 47100
