LAPP 2170240 UNITRONIC® BUS EIB Green Cable 2 x 2 x 0.8mm²

LAPP
MPN
2170240
Brand
LAPP
Order Code
63-6586
Country of Origin
Germany
Qty Unit Price (Ex VAT)
5+ £0.889
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
Available to back orderBack order, lead time 3 weeks

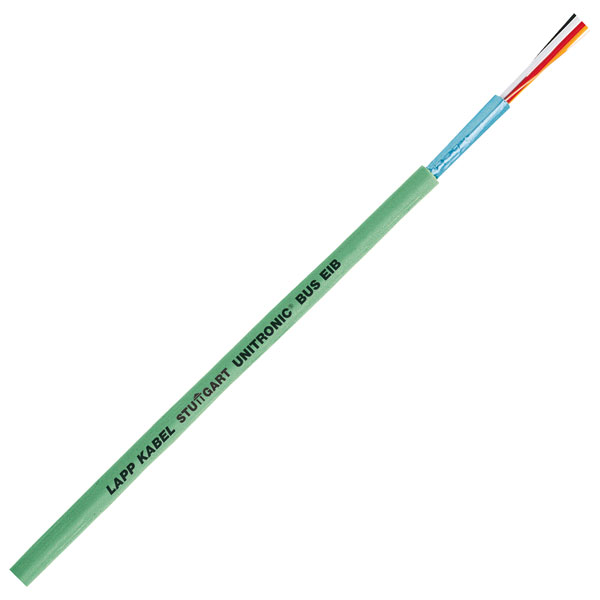

This cable from LAPP can be laid on or under plaster; in pipes, cable ducts and in dry, damp or wet environments.


  • Bend radius (no. of ODs for fixed installation): 10
  • Cable features: Halogen-free, Shielded
  • Cable Type: UNITRONIC® BUS
  • Colour: Green
  • Core resistance: (Loop) 130 Ω
  • Cross section 2 x 2 x 0.8mm²
  • Insulation material: PVC
  • Max. temperature range (fixed installation): +70°C
  • Max. temperature range (flexible installation): +70°C
  • Min. temperature range (fixed installation): -30°C
  • Min. temperature range (flexible installation): -30°C
  • No. of leads 4
  • Operating capacity: (800 Hz) max. 100 nF/km
  • Outside diameter: 6.6mm
  • Shielded: Yes
  • Sold per metre: Yes
  • Standards: EIB
  • Test voltage: 4000V
  • Manufacturer's part 2170240

This cable will be supplied in one continuous length, subject to the maximum reel size. For example, an order for 7 metres of cable will result in a single 7-metre cable being supplied, not 7 one-metre lengths.
Colour Green
Number of Cores 2
Conductor Cross Section 2 x 2 x 0.8mm²
AWG Not Specified
Conductor Stranding Finely stranded
Insulation Material Polyvinyl Chloride (PVC)
Length Sold per metre
Cable Diameter 6.6mm
Sold by Metre Yes
Standards EIB
