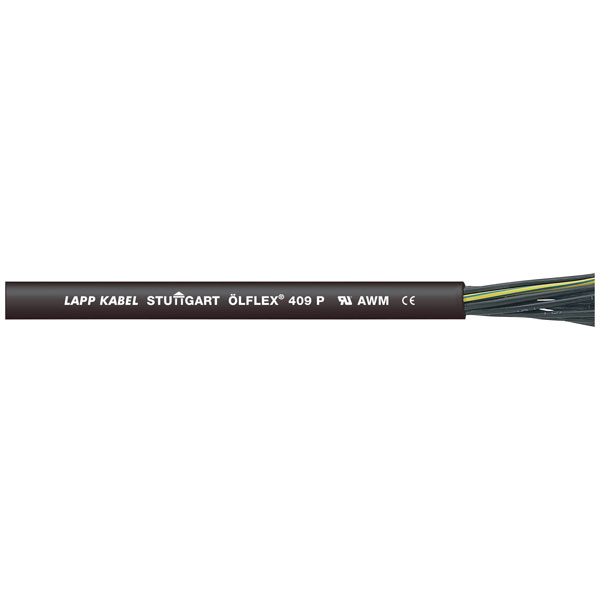

LAPP 1311212 ÖLFLEX® 409 P Control lead 12 G 1 mm² Black 1311212

Ölflex ® 409 P lines are for the North American market certified connection and control cables for occasionally flexible use and fixed laying at average mechanical load. They are suitable for use in dry, damp and wet rooms. In the open only under consideration of the temperature ranges can be used. At room temperature, they are resistant to a large extent to the action of acids, bases and specific oils. The outer sheath is resistant to high mechanical stress, in particular scouring and grinding stress, cut-proof, microbes and hydrolysis resistant. They are suitable for free, not constantly recurring movement Without tensile load or forced guiding. .

Colour	Black
Type	ÖLFLEX® 409 P
Bend radius (no. of ODs for fixed installation)	4
Bend radius (no. of ODs for flexible installation)	12.5
Cable Diameter	11.70mm
Conductor Cross-section	1mm²
Core layout	Finely stranded according to VDE 0295, Class 5 / IEC 60228
Halogen-free	No
Max. temperature range (fixed installation)	+80°C
Max. temperature range (flexible installation)	+70°C
Min. temperature range (fixed installation)	-40°C
Min. temperature range (flexible installation)	-5°C
Nominal Voltage	300V
Number of leads	12 G
Packaged	No
Sold by Metre	Yes
Standards	Black with white numbers according to VDE 0293-1
Test voltage	4000V
