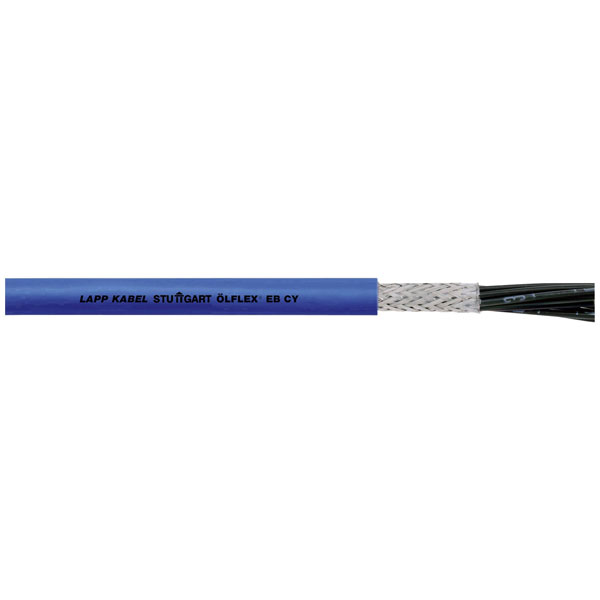

LAPP 12640/100 ÖLFLEX® EB CY Control lead 2 x 0.75 mm Blue 12640/100 100 m

For permanent installation in industrial facilities where there is a risk of explosion. The cable is complies with the VDE 0165 section 12.2.2.6, which stipulates special labelling of cables and wires from the ignition protection type ‘i’ (intrinsic safety). High-stability is secured through a solid copper wire in connection with a special jacket mix based on PVC. In addition, the copper conductors are covered with a braided shielding made of tin-plated Cu-wires and a winding with insulating plastic film.

Colour	Blue
Number of Cores	2
Conductor Cross Section	0.75mm²
AWG	Not Specified
Conductor Stranding	Finely stranded
Insulation Material	Polyvinyl Chloride (PVC)
Length	100m
Bend radius (no. of ODs for fixed installation)	6
Bend radius (no. of ODs for flexible installation)	20
Cable Diameter	6.20mm
Core layout	Finely stranded
Halogen-free	No
Max. temperature range (fixed installation)	+80°C
Max. temperature range (flexible installation)	+70°C
Min. temperature range (fixed installation)	-40°C
Min. temperature range (flexible installation)	-5°C
Nominal Voltage	300V
Packaged	Yes
Sold by Metre	No
Standards	In accordance with VDE-Guideline VDE 0250
Temperature Range	When fixed -40 to +70 ºC°C
Test Voltage	2000V
Type	ÖLFLEX EB CY 2X0,75
