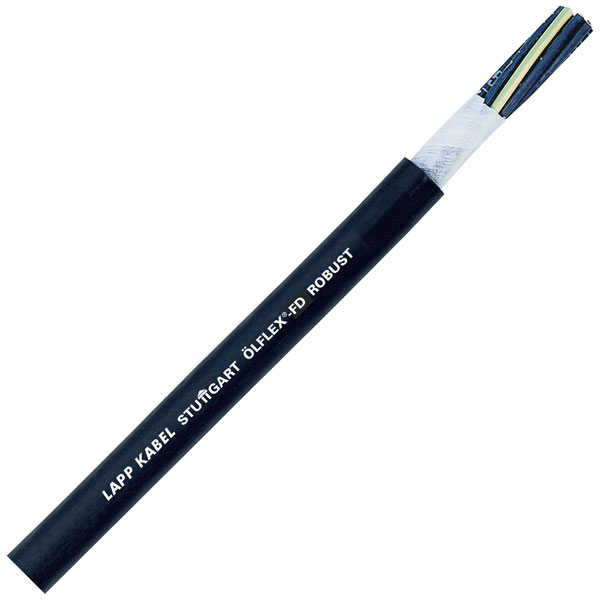

LAPP 0026501 ÖLFLEX® ROBUST FD Black Control Cable 3 x 0.75mm²

LAPP
Order Code:

63-2806

Brand: LAPP MPN: 26501/1 EAN-13: 2050000193286
Qty Unit Price (Ex VAT)
2+ £3.66
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
125 available to back orderBack-order availability date - 10/01/2026

This reliable TPE-insulated black cable from LAPP is suitable for use with power chains or moving machine parts.


  • Bend radius (no. of ODs for flexible installation): 7.5
  • Cable features: Halogen-free, Suitable for drag chains, Oil-resistant
  • Cable Type: ÖLFLEX® FD ROBUST Drag chain cable
  • Colour: Black
  • Core layout: Extra-finely stranded according to VDE 0295 class 6/IEC 60228 Class 6
  • Cross section 3 x 0.75mm²
  • Halogen free
  • Max. temperature range (fixed installation): +110°C
  • Max. temperature range (flexible installation): +105°C
  • Min. temperature range (fixed installation): -50°C
  • Min. temperature range (flexible installation): -40°C
  • No. of leads 3
  • Nominal voltage: 500V
  • Nominal voltage U0: 300V
  • Outside diameter: 7.2mm
  • Shielded: No
  • Sold per metre: Yes
  • Standards: DIN VDE compliant, conductors to VDE 0245/0281 sheath to VDE 0245/0281
  • Manufacturer's part 0026501

This cable will be supplied in one continuous length, subject to the maximum reel size. For example, an order for 7 metres of cable will result in a single 7-metre cable being supplied, not 7 one-metre lengths.
Colour Black
Number of Cores 3
Insulation Material TPE
Cable Diameter 7.2mm
Conductor Cross-section 3 x 0.75mm²
Sold by Metre Yes
