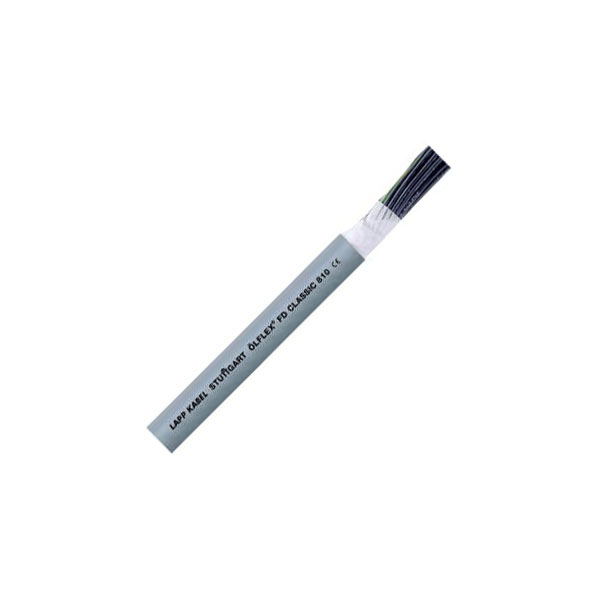

LAPP 0026101 ÖLFLEX® FD CLASSIC 810 Drag Chain Cable 3 x 5mm²

This highly flexible drag chain cable from LAPP is suitable for use in assembly lines, production lines, and with machines of all kinds. Oil-resistant, highly flexible and abrasion-proof PUR-connection line of the latest generation can be used even in moist and wet rooms. This oil-resistant, highly flexible and abrasion-proof PUR-connection drag chain cable from LAPP can be used even in damp and wet conditions. Suitable for use in power chains or in moving machine parts.

• Coded numbers
• Suitable for travel up to 10m
• Bend radius (no. of ODs for fixed installation): 4
• Bend radius (no. of ODs for flexible installation): 7.5
• Cable features: Suitable for drag chains, Flame-retardant, highly flexible
• Cable Type: ÖLFLEX® FD CLASSIC 810 Drag chain cable
• Colour: Grey
• Core layout: Extra-finely stranded according to VDE 0295 class 6/IEC 60228 Class 66
• Cross section 3 x 0.5mm²
• Max. temperature range (fixed installation): +80°C
• Max. temperature range (flexible installation): +70°C
• Min. temperature range (fixed installation): -40°C
• Min. temperature range (flexible installation): 0°C
• No. of leads 3
• Nominal voltage: 500V
• Nominal voltage U0: 300V
• Outside diameter: 6.2mm
• Shielded: No
• Sold per metre: Yes
• Standards: DIN VDE compliant, conductors to VDE 0245/0281 sheath to VDE 0245/0281
• Manufacturer's part 0026101

This cable will be supplied in one continuous length, subject to the maximum reel size. For example, an order for 7 metres of cable will result in a single 7-metre cable being supplied, not 7 one-metre lengths.

Colour	Grey
Number of Cores	3
Conductor Cross Section	3 x 0.5mm²
Insulation Material	Polyvinyl Chloride (PVC)
Length	Sold per metre
Cable Diameter	6.2mm
Sold by Metre	Yes
Type	Drag chain cable
