Labfacility XE-2736-025 6 Core 25M Reel PFA Insulated Tin Plated Copper Cable

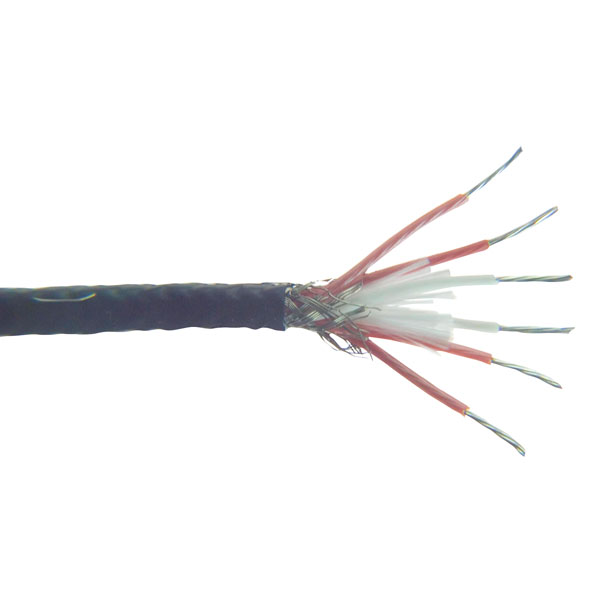

A 25m reel of 6-core PFA insulated cable designed for extending Platinum Resistance Thermometers (PRT), being commonly used to extend 2 x 3-wire duplex (dual element) configurations of Pt100 sensors as well as other types such as Pt130, Pt500 and Pt1000. The cable is are constructed from PFA insulated 7/0.2mm tin plated copper conductors that are twisted with nylon cord and wrapped with a tin plated copper braided screen, the whole being covered by a PFA insulated outer jacket.

• High temperature to 260°C
• Flexible with good mechanical strength
• Resistant to oils, acids and other adverse fluids
• Cores colour coded red and white iaw IEC 751
• Insulation rating -75°C to +260°C
