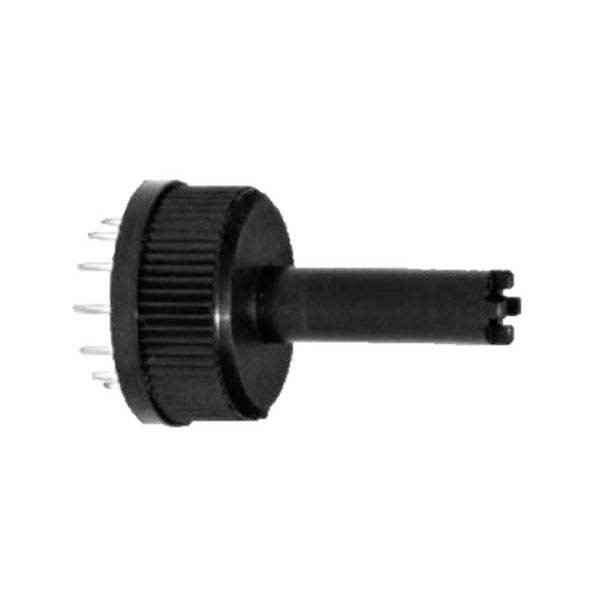

KYOCERA/AVX 9341960114 Rotary Switch 150V 130mA 12 Positions 15°

The KYOCERA/AVX 9341960114 rotary switch is designed for electrical systems requiring a reliable switching solution, accommodating up to 12 positions with a 15-degree angle. It supports voltage ratings of 150 V DC/AC and a current of 130 mA, suitable for precise control applications. This switch is typically used in industrial and consumer electronics for selecting modes or functions.

Type	Rotary switch
Number of Positions	12
Index Stops	12
Number of Decks	1
Current Rating (Amps)	130mA
Actuator Type	Rotary Shaft
(Ø)	19.4mm
Angle of Throw	15°
Axle Ø	6mm
Casing/button colour	Black
Connection	Pins
Contact Material	Copper silver plated
Dim	(Ø x L) 19.4 mm x 30 mm
Functions	latch
Length	30mm
Lighting Type	None
Material	Plastic
Operation type	Rotary switch
Switch postions	12
Switching Voltage	150V DC/AC
