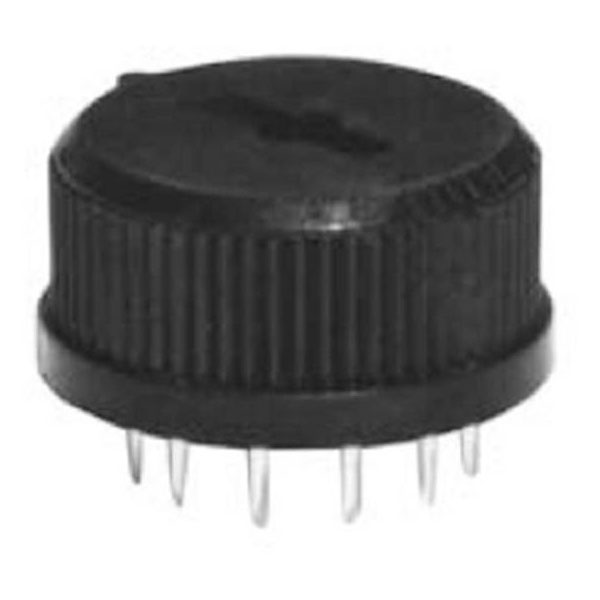

KYOCERA/AVX 9341760011 Rotary Switch 150V 130mA 12 Positions

The KYOCERA/AVX 9341760011 rotary switch is designed for both DC and AC applications with a maximum voltage of 150 V and a current rating of 130 mA. With 12 switch positions set at 15-degree increments, it offers precise control. This type of switch is typically used in electronic devices where multiple configurations or settings are required.

Type	Rotary switch
Number of Positions	12
Index Stops	12
Number of Decks	1
Current Rating (Amps)	130mA
Actuator Type	Knob
(Ø)	19.4mm
Angle of Throw	15°
Casing/button Colour	Black
Connection	Pins
Contact Material	Copper silver plated
Dim	(Ø x L) 19.4 mm x 10 mm
Functions	latch
Length	10mm
Lighting Type	None
Material	Plastic
Operation type	Rotary switch
Switch postions	12
Switching Voltage	150V DC/AC
