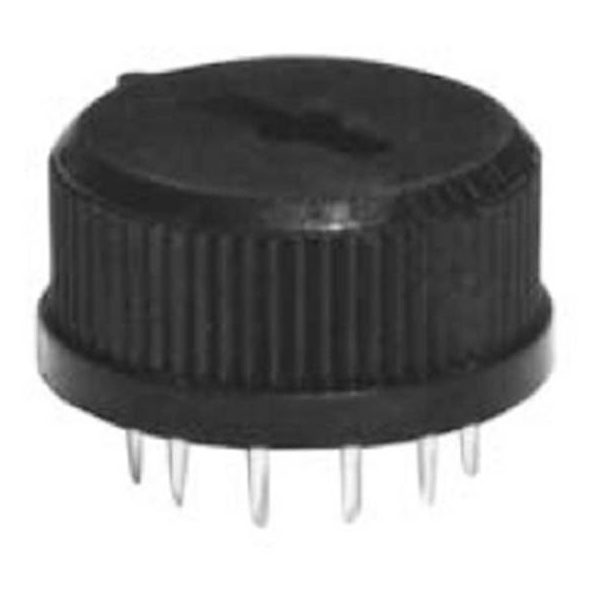

KYOCERA/AVX 9341700045 Rotary Switch 150V 130mA 3 Positions 15°

The KYOCERA/AVX 9341700045 rotary switch is designed for use in circuits up to 150 V DC/AC with a switching current of 130 mA. It features three switch positions with 15° increments. This switch is ideal for applications requiring precise selection or control in electronic devices.

Type	Rotary switch
Number of Positions	3
Index Stops	3
Number of Decks	1
Current Rating (Amps)	130mA
Actuator Type	Knob
(Ø)	19.4mm
Angle of Throw	15°
Casing/button colour	Black
Connection	Pins
Contact Material	Copper silver plated
Dim	(Ø x L) 19.4 mm x 10 mm
Functions	latch
Length	10mm
Lighting Type	None
Material	Plastic
Operation type	Rotary switch
Switch postions	3
Switching Voltage	150V DC/AC
