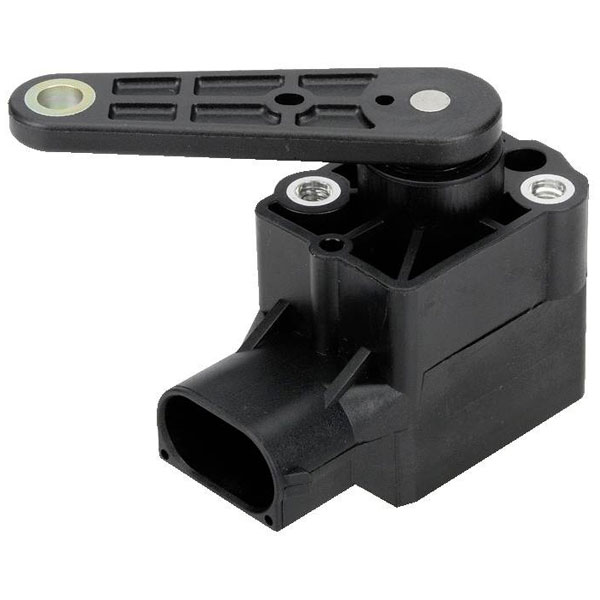

KYOCERA/AVX 9174300010 Hall Effect Sensor 4.5-5.5V 60° Range AMP Plug

The KYOCERA/AVX 9174300010 is a Hall effect sensor designed for precise positioning and current sensing, operating at a voltage range of 4.5 - 5.5 V. It features a reading range between 60 to 60 degrees, making it suitable for a variety of proximity detection applications. This sensor is ideal for use in magnetic field sensing and other applications requiring accurate detection of positional changes.

Type	Hall effect sensor
Supply Voltage	4.5 - 5.5 V
Connector	AMP plug
Dim	(L x W x H) 55 x 43 x 36 mm
Height	36mm
Length	55mm
Max. operating voltage	5.5V
Maximum Temperature	+100°C
Min. operating voltage	4.5V
Min. temperature	-40°C
Operating Current	6mA
Outputs	Voltage (analogue)
Range	60 - 60°
Reading range (max.)	60°
Reading range (min.)	60°
Width	43mm
