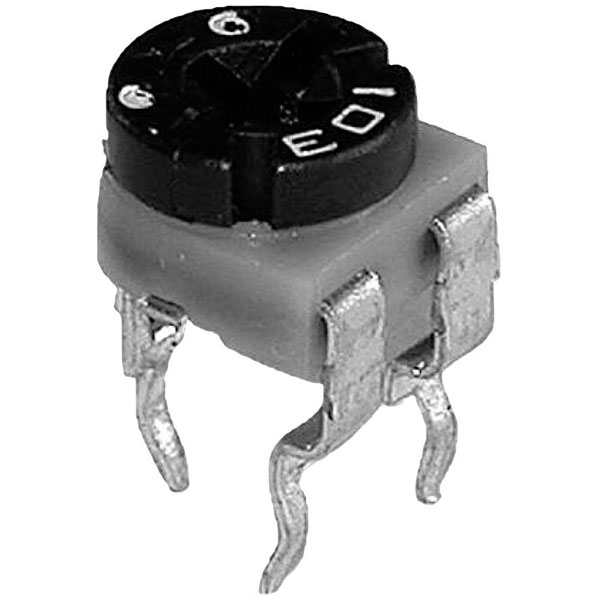

KYOCERA/AVX 601020 Carbon film pot linear 0.1 W 1 kΩ 210° 1 pc(s)

KYOCERA/AVX 601020, alternatively referred to as 2827012, is a carbon film potentiometer designed for precise and reliable linear resistance adjustments in various electronic applications. With a resistance value of 1 kO and a power rating of 0.1 watts, this single-turn potentiometer offers a rotation angle of 210 degrees, ensuring fine-tuning capabilities for electronics requiring variable resistance control. Commonly deployed in signal processing, audio volume regulation, and control systems, the precision and durability of this component make it an essential choice for engineers designing circuits that demand consistent performance under varying conditions.

Type	601020
Resistance	1kΩ
Power Rating	0.1W
Connection	Pins
Content	1
Cross Section	5mm
Cut-off Voltage	50V
Dimensions	(L x W x H) 7.5 x 5 x 7.6 mm
Height	7.6mm
Length	7.5mm
Mechanical Angle	210°
Operation type	top
Outside Diameter	6.5mm
Product Type	Carbon film pot
Resistance characteristic	linear
Tolerance ±	0.3%
Width	5mm
