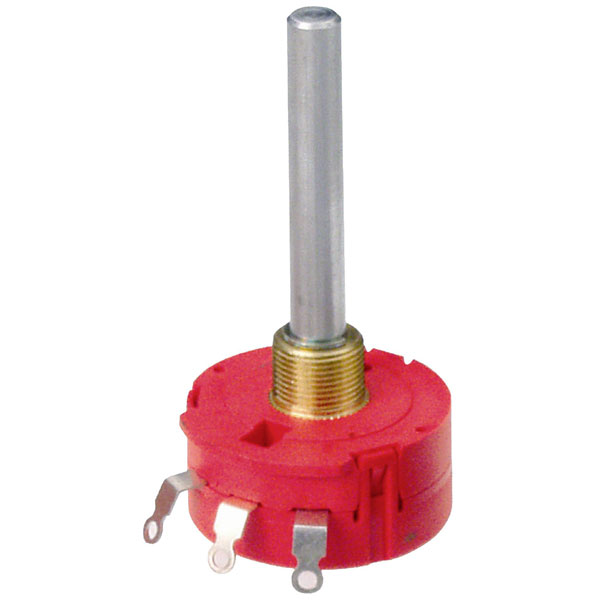

KYOCERA/AVX 3114317995 Wire-wound Rotary Potentiometer 2W 10kΩ Mono

KYOCERA/AVX 3114317995 is a wire-wound rotary potentiometer designed for precision applications, featuring a power rating of 2 watts and a resistance of 10 kO. This mono-type potentiometer is engineered with a slide configuration that ensures smooth, accurate adjustments, making it ideal for use in various electronic circuits requiring variable resistance control. Its robust construction and reliable performance make it suitable for use in instrumentation, audio control systems, and industrial automation, where precise manipulation of electrical signals is critical. The design considerations and manufacturing quality by KYOCERA/AVX ensure longevity and consistent performance in demanding environments.

Type	3114317995
Resistance	10kO
Power Rating	2W
Actuating Force	2.5Ncm
Axle Diameter	6mm
Case Dimensions	28.5mm
Connection	Solder tag
Content	1
Cut-off Voltage	300V
Diameter	28.5mm
Dimensions	(Ø x L) 28.5 mm x 15 mm
Electrical Angle	270°
Impact Tolerance	100Ncm
Length	15mm
Lever Length	22mm
Max. temperature	+90°C
Maximum Temperature	+90°C
Mechanical Angle	300°
Min. temperature	-40°C
Minimum Operating Temperature	-40°C
Output	Mono
Product Type	Wire-wound pot
Resistance characteristic	linear
Temperature Coefficient	140ppm/°C
Thread Length	10mm
Thread Size	M10
Tolerance ±	0.1%
