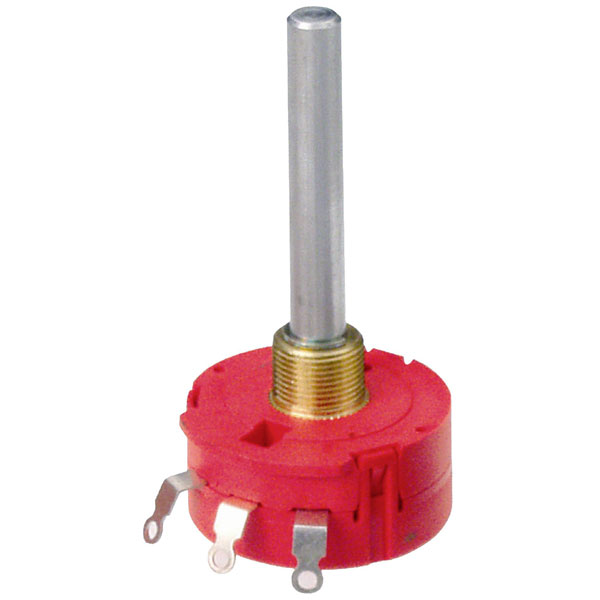

KYOCERA/AVX 3114315997 Wire-wound pot Mono 2W 1kΩ Rotary Potentiometer

KYOCERA/AVX 3114315997 is a wire-wound potentiometer that features a power rating of 2 watts and a resistance of 1 kilohm. Designed with a rotary configuration, this mono potentiometer offers precise resistance adjustment, making it suitable for applications where fine-tuning of electrical circuits is required. Its robust construction is ideal for deployment in audio control systems, instrumentation panels, and other contexts where reliability and accuracy are critical. As a type of slide potentiometer, it provides stable performance and durability, essential for engineers seeking dependable components for their designs.

Type	3114315997
Resistance	1kΩ
Power Rating	2W
Actuating Force	2.5Ncm
Axle Diameter	6mm
Case Dimensions	28.5mm
Connection	Solder tag
Content	1
Cut-off Voltage	300V
Diameter	28.5mm
Dimensions	(Ø x L) 28.5 mm x 15 mm
Electrical Angle	270°
Impact Tolerance	100Ncm
Length	15mm
Lever Length	43mm
Max. temperature	+90°C
Maximum Temperature	+90°C
Mechanical Angle	300°
Min. temperature	-40°C
Minimum Operating Temperature	-40°C
Output	Mono
Product Type	Wire-wound pot
Resistance characteristic	linear
Thread Length	10mm
Thread Size	M10
Tolerance ±	0.1%
