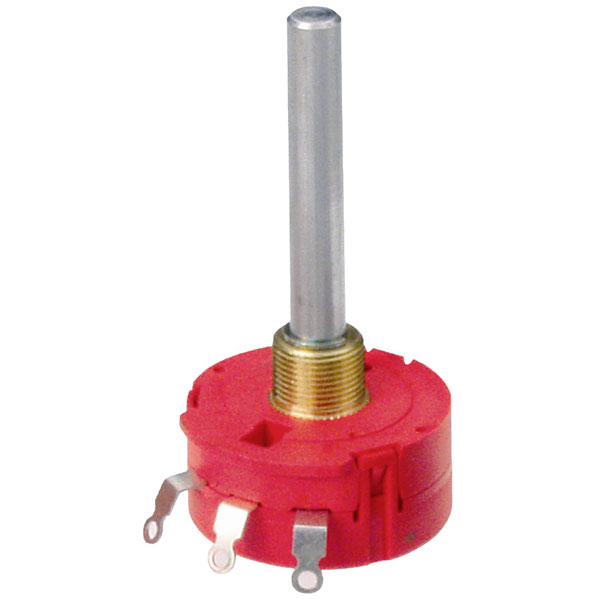

KYOCERA/AVX 3114308127 Wire-wound potentiometer 2W 10kΩ rotary control

KYOCERA/AVX 3114308127 is a robust wire-wound potentiometer specifically designed for precision applications, offering a power rating of 2 watts and a resistance of 10 kilo-ohms. This rotary control potentiometer features a slide type mechanism, ensuring smooth operation and reliable linearity, making it ideal for tasks that require precise resistance adjustments. Engineered for durability and accuracy, the device is well-suited for use in professional audio equipment, instrumentation panels, and other electronic applications where accuracy and reliability are paramount. As a single-channel potentiometer, it is most commonly employed in mono configurations, supporting its versatility in varied engineering environments.

Type	3114308127
Resistance	10kO
No of Turns	1
Power Rating	2W
Actuating Force	2.5Ncm
Axle Diameter	6mm
Case Dimensions	28.5mm
Connection	Solder tag
Content	1
Cut-off Voltage	300V
Diameter	28.5mm
Dimensions	(Ø x L) 28.5 mm x 15 mm
Electrical Angle	270°
Impact Tolerance	100Ncm
Length	15mm
Lever Length	23mm
Maximum Temperature	+90°C
Mechanical Angle	300°
Minimum Temperature	-40°C
Output	Mono
Product Type	Wire-wound pot
Resistance characteristic	linear
Temperature Coefficient	140ppm/°C
Thread Length	10mm
Thread Size	M10
Tolerance ±	0.1%
