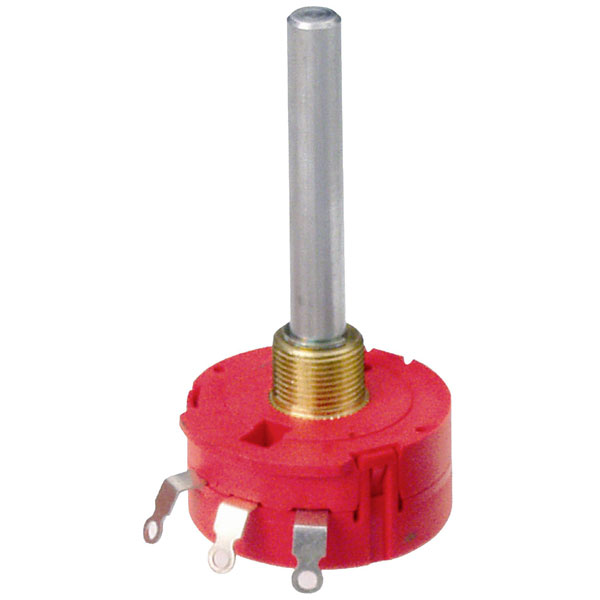

KYOCERA/AVX 3114307990 Wire-wound pot Mono 2 W 10 kΩ Rotary Potentiometer

KYOCERA/AVX 3114307990 is a wire-wound potentiometer designed for precision control over electrical resistance, with a resistance value of 10 kO and a power rating of 2 watts. This rotary potentiometer features a mono configuration, ideal for applications requiring single-channel adjustments, and is characterized by its durable wire-wound construction, which provides enhanced stability and longevity in resistance. Commonly integrated into audio equipment, instrumentation, and control systems, this potentiometer is a suitable choice for engineers needing reliable performance in variable resistance scenarios, particularly in environments subject to frequent adjustments. The design ensures consistent performance, making it an essential component in fine-tuning circuits and adjusting output signals.

Type	3114307990
Resistance	10kΩ
No of Turns	1
Power Rating	2W
Actuating Force	2.5Ncm
Axle Diameter	6mm
Case Dimensions	28.5mm
Connection	Solder tag
Content	1
Cut-off Voltage	300V
Diameter	28.5mm
Dimensions	(Ø x L) 28.5 mm x 15 mm
Electrical Angle	270°
Impact Tolerance	100Ncm
Length	15mm
Lever Length	50mm
Max. temperature	+90°C
Maximum Temperature	+90°C
Mechanical Angle	300°
Min. temperature	-40°C
Minimum Operating Temperature	-40°C
Output	Mono
Product Type	Wire-wound pot
Resistance characteristic	linear
Temperature Coefficient	140ppm/°C
Thread Length	10mm
Thread Size	M10
Tolerance ±	0.1%
