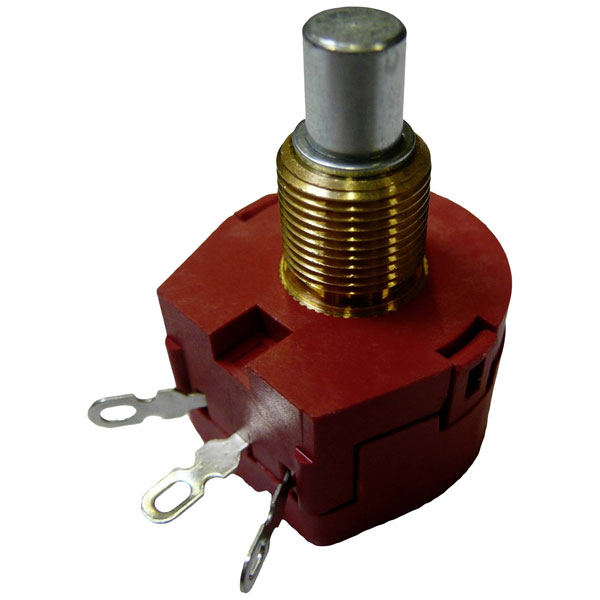

KYOCERA/AVX 3109602270 wire-wound potentiometer 1W 22Ω rotary control

KYOCERA/AVX 3109602270 is a wire-wound potentiometer renowned for delivering precise rotary control. Rated at 1 watt with a 22-ohm resistance, this mono potentiometer offers durability and stability, making it an ideal choice for applications requiring reliable variable resistance. Its slide mechanism ensures smooth operation and accurate adjustments, critical for audio equipment, variable power supplies, and instrumentation controls. By providing consistent performance in demanding conditions, this component is integral in both commercial and industrial electronics where precision and longevity are crucial.

Type	3109602270
Resistance	22O
Power Rating	1W
Actuating Force	3Ncm
Axle Diameter	6mm
Case Dimensions	23mm
Connection	Solder tag
Content	1
Cut-off Voltage	300V
Diameter	23mm
Dimensions	(Ø x L) 23 mm x 17.5 mm
Electrical Angle	265°
Impact Tolerance	100Ncm
Length	17.5mm
Lever Length	50mm
Maximum Temperature	+90°C
Mechanical Angle	285°
Minimum Temperature	-40°C
Output	Mono
Product Type	Wire-wound pot
Resistance characteristic	linear
Thread Length	10mm
Thread Size	M10
Tolerance ±	0.2%
