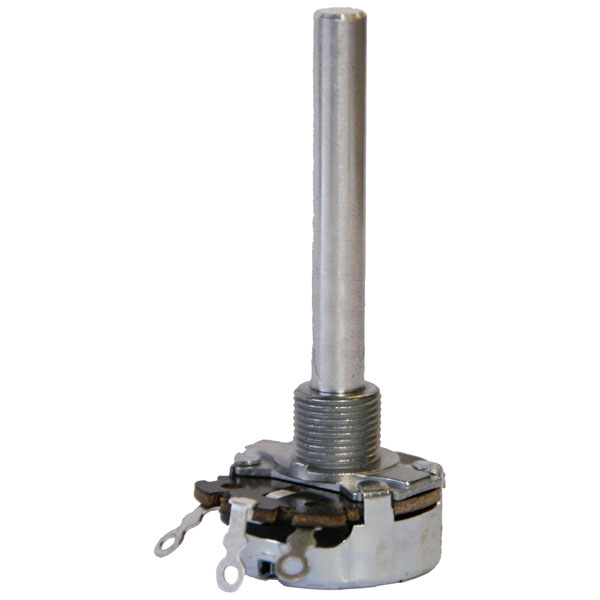

KYOCERA/AVX 3104608793 Wire-wound Pot 4W 25kΩ Rotary Potentiometer

KYOCERA/AVX 3104608793 is a precision-engineered rotary wire-wound potentiometer, designed for applications requiring precise voltage control and adjustment. Featuring a resistance of 25 kO and a power rating of 4 W, this component is ideal for use in high-power circuits and sensitive electronic configurations. Its robust wire-wound construction offers superior durability and reliability, making it suitable for demanding environments where stability and accuracy are paramount. Commonly employed in audio equipment, instrumentation, and industrial control systems, the KYOCERA/AVX 3104608793 potentiometer ensures consistent performance with its meticulous build quality, while its rotary action provides adjustable resistance, catering to the specific tuning requirements of complex electronic setups.

Type	3104608793
Resistance	25kΩ
Power Rating	4W
Actuating Force	3.6Ncm
Axle Diameter	6mm
Case Dimensions	24mm
Connection	Solder tag
Content	1
Cut-off Voltage	500V
Diameter	24mm
Dimensions	(Ø x L) 24 mm x 12 mm
Electrical Angle	280°
Impact Tolerance	115Ncm
Length	12mm
Lever Length	20mm
Max. temperature	+90°C
Maximum Temperature	+90°C
Mechanical Angle	300°
Min. temperature	-40°C
Minimum Operating Temperature	-40°C
Output	Mono
Product Type	Wire-wound pot
Resistance characteristic	linear
Temperature Coefficient	20ppm/°C
Thread Length	8mm
Thread Size	M10
Tolerance ±	0.1%
