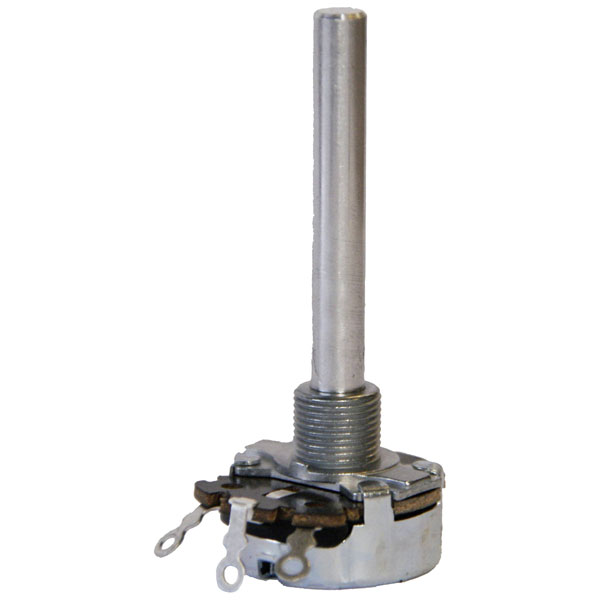

KYOCERA/AVX 3104608788 Wire-wound pot Mono 4W 25kΩ Rotary Potentiometer

KYOCERA/AVX 3104608788 is a wire-wound potentiometer with a robust design featuring a mono configuration and a power rating of 4 watts. This rotary potentiometer offers a resistance value of 25 kilo-ohms, making it suitable for precise control in various electronic circuits. Characterised as a slide potentiometer, it provides reliability and precise adjustment in audio equipment, industrial control systems, and instrumentation applications where accurate resistance tuning is essential. The wire-wound construction enhances durability and stability, ensuring consistent performance under varying environmental conditions. This unit is engineered to meet the rigorous demands of professional settings, delivering long-lasting functionality.

Type	3104608788
Resistance	25kO
Power Rating	4W
Actuating Force	3.6Ncm
Axle Diameter	6mm
Case Dimensions	24mm
Connection	Solder tag
Content	1
Cut-off Voltage	500V
Diameter	24mm
Dimensions	(Ø x L) 24 mm x 12 mm
Electrical Angle	280°
Impact Tolerance	115Ncm
Length	12mm
Lever Length	50mm
Maximum Temperature	+90°C
Mechanical Angle	300°
Minimum Temperature	-40°C
Output	Mono
Product Type	Wire-wound pot
Resistance characteristic	linear
Temperature Coefficient	20ppm/°C
Thread Length	8mm
Thread Size	M10
Tolerance ±	0.1%
