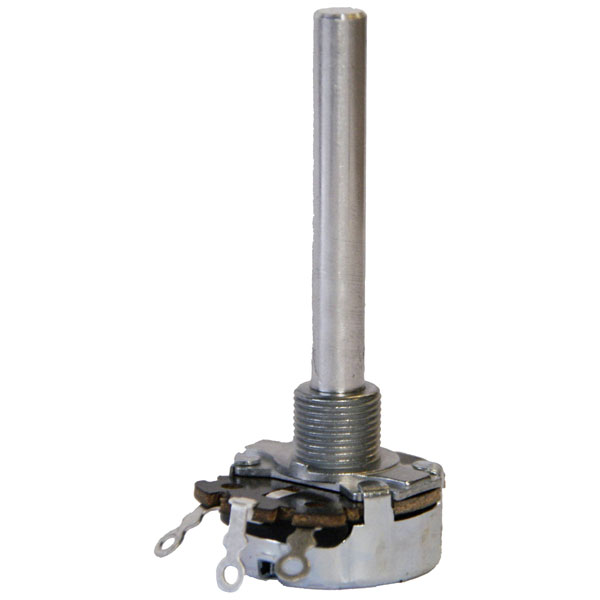

KYOCERA/AVX 3104608394 Wire-wound pot Mono 4W 22 kΩ Rotary Potentiometer

KYOCERA/AVX 3104608394 is a high-precision wire-wound mono rotary potentiometer, offering a power rating of 4 watts and a resistance value of 22 kO. This component is optimally designed for applications requiring reliable resistance control, such as audio level adjustment, instrumentation calibration, and feedback amplifiers. As a slide potentiometer, it is suited for integration into circuit boards where space is a constraint, providing smooth and accurate variable resistance. The robust construction ensures consistent performance in demanding environments, making it an ideal choice for both industrial and consumer electronics. Its durability and precise control capabilities are highly valued in professional audio equipment and industrial automation systems.

Type	3104608394
Resistance	22kO
Power Rating	4W
Actuating Force	3.6Ncm
Axle Diameter	6mm
Case Dimensions	24mm
Connection	Solder tag
Content	1
Cut-off Voltage	500V
Diameter	24mm
Dimensions	(Ø x L) 24 mm x 12 mm
Electrical Angle	280°
Impact Tolerance	115Ncm
Length	12mm
Lever Length	50mm
Maximum Temperature	+90°C
Mechanical Angle	300°
Minimum Temperature	-40°C
Output	Mono
Product Type	Wire-wound pot
Resistance characteristic	linear
Temperature Coefficient	20ppm/°C
Thread Length	8mm
Thread Size	M10
Tolerance ±	0.1%
