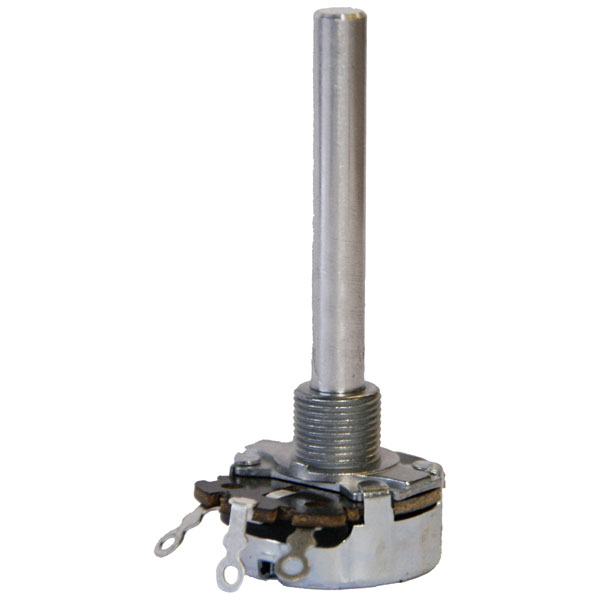

KYOCERA/AVX 3104607990 Wire-wound mono pot 4W 10kΩ Rotary Control 1pc

KYOCERA/AVX 3104607990 is a wire-wound mono potentiometer designed for precision control in electronic circuits. This rotary control device has a power rating of 4 watts and a resistance of 10 kO, making it suitable for applications requiring accurate adjustment of electrical parameters. Engineered as a slide potentiometer, it provides reliable performance in diverse environments, ensuring stability and minimal signal noise. Typical uses for this component include audio equipment, industrial machinery, and instrumentation, where precise control of electrical variables is crucial. Its robust construction makes it ideal for demanding applications, providing longevity and consistent functionality.

Type	3104607990
Resistance	10kΩ
Power Rating	4W
Actuating Force	3.6Ncm
Axle Diameter	6mm
Axle length	50mm
Case Dimensions	24mm
Connection	Solder tag
Content	1
Cut-off Voltage	500V
Diameter	24mm
Dimensions	(Ø x L) 24 mm x 12 mm
Electrical Angle	280°
Impact Tolerance	115Ncm
Length	12mm
Maximum Temperature	+90°C
Mechanical Angle	300°
Minimum Temperature	-40°C
Output	Mono
Product Type	Wire-wound pot
Resistance characteristic	linear
Temperature Coefficient	20ppm/°C
Thread Length	8mm
Thread Size	M10
Tolerance ±	0.1%
