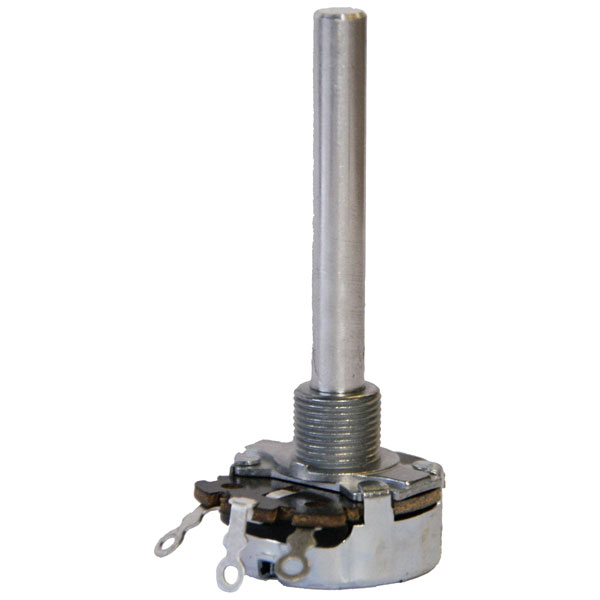

KYOCERA/AVX 3104607989 Wire-wound pot Mono 4W 10kΩ 1pc Rotary Potentiometer

KYOCERA/AVX 3104607989 is a rotary potentiometer that features a precise wire-wound construction, suitable for applications requiring high reliability and accurate control. It is designed to handle power ratings of up to 4 watts and offers a resistance of 10 kilohms, which makes it ideal for tasks involving variable voltage division and tuning applications. This particular model provides a single-channel or mono output and is often used in audio equipment for volume control, as well as in instrumentation and industrial machinery for adjusting signal levels. The mechanical design of the rotary potentiometer ensures consistent performance and longevity, even in demanding environments. Its versatile nature makes it a common choice among engineers seeking robust and dependable variable resistance devices.

Type	10,000 cycles
Resistance	10kΩ
Power Rating	4W
Actuating Force	3.6Ncm
Axle Diameter	6mm
Axle length	50mm
Case Dimensions	24mm
Connection	Solder tag
Content	1
Cut-off Voltage	500V
Diameter	24mm
Dimensions	(Ø x L) 24 mm x 12 mm
Electrical Angle	280°
Impact Tolerance	115Ncm
Insulation Resistance	1000V
Length	12mm
Maximum Temperature	+90°C
Mechanical Angle	300°
Minimum Temperature	-40°C
Output	Mono
Product Type	Wire-wound pot
Resistance characteristic	linear
Temperature Coefficient	20ppm/°C
Thread Length	8mm
Thread Size	M10
Tolerance ±	0.1%
