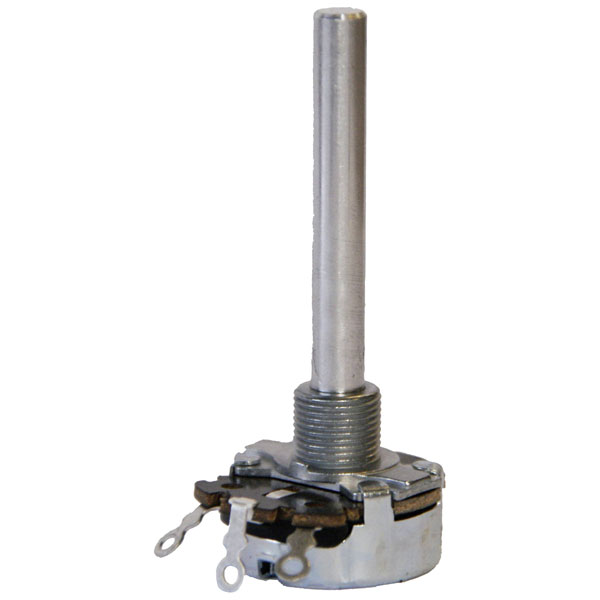

KYOCERA/AVX 3104604002 Wire-wound Rotary Potentiometer 4W 100Ω 1pc

KYOCERA/AVX 3104604002 is a wire-wound rotary potentiometer rated at 4 watts with a resistance of 100 ohms. This component functions as a precision adjustable resistor, making it ideal for applications requiring reliable and precise calibration of electrical devices. Designed for diverse engineering applications, it serves as a versatile tool in both analogue signal processing and adjustable power supplies, allowing engineers to fine-tune circuits for optimal performance. The wire-wound construction enhances durability and stability, while the rotary design provides smooth, continuous control. This potentiometer is typically utilised in laboratory settings, audio equipment, and industrial control systems, where precise control of electrical parameters is critical.

Type	3104604002
Resistance	100Ω
Power Rating	4W
Actuating Force	3.6Ncm
Axle Diameter	6mm
Case Dimensions	24mm
Connection	Solder tag
Content	1
Cut-off Voltage	500V
Diameter	24mm
Dimensions	(Ø x L) 24 mm x 12 mm
Electrical Angle	280°
Impact Tolerance	115Ncm
Length	12mm
Lever Length	20.5mm
Max. temperature	+90°C
Maximum Temperature	+90°C
Mechanical Angle	300°
Min. temperature	-40°C
Minimum Operating Temperature	-40°C
Output	Mono
Product Type	Wire-wound pot
Resistance characteristic	linear
Thread Length	8mm
Thread Size	M10
Tolerance ±	0.1%
