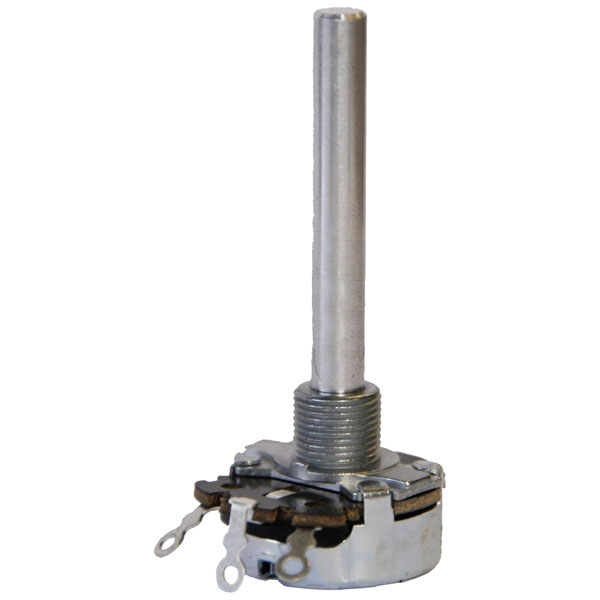

KYOCERA/AVX 3104604001 Wire-wound Rotary Potentiometer 4W 100Ω

KYOCERA/AVX 3104604001 is a wire-wound rotary potentiometer designed for precise resistance control in various electronic applications. This potentiometer features a robust power rating of 4 watts and offers a resistance value of 100 ohms, making it suitable for tasks requiring reliable current regulation. The wire-wound construction ensures enhanced durability and stability, ideal for environments where consistent performance is critical. Its typical applications include use in audio equipment, signal conditioning, and as a variable resistor in feedback circuits, where precise adjustments are necessary for fine-tuning performance parameters. With its slide design, this component is conducive to straightforward integration into circuits needing flexible resistance adjustments.

Type	3104604001
Resistance	100Ω
Power Rating	4W
Actuating Force	3.6Ncm
Axle Diameter	6mm
Case Dimensions	24mm
Connection	Solder tag
Content	1
Cut-off Voltage	500V
Diameter	24mm
Dimensions	(Ø x L) 24 mm x 12 mm
Electrical Angle	280°
Impact Tolerance	115Ncm
Length	12mm
Lever Length	50mm
Max. temperature	+90°C
Maximum Temperature	+90°C
Mechanical Angle	300°
Min. temperature	-40°C
Minimum Operating Temperature	-40°C
Output	Mono
Product Type	Wire-wound pot
Resistance characteristic	linear
Thread Length	8mm
Thread Size	M10
Tolerance ±	0.1%
