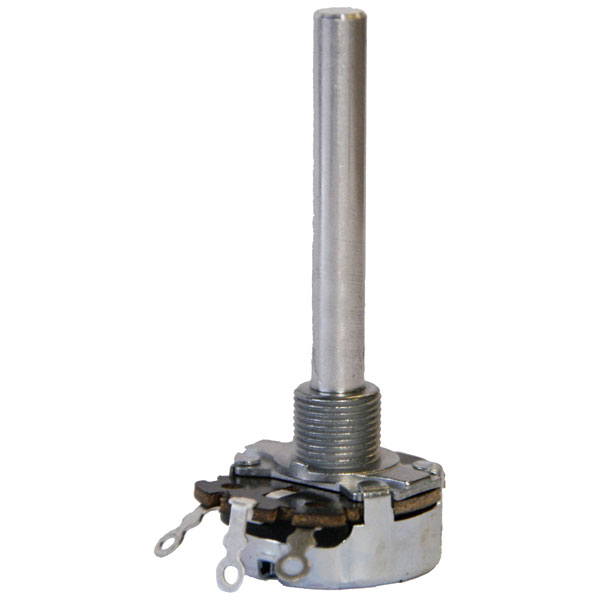

KYOCERA/AVX 3104601739 Wire-wound pot Mono 4 W 10 Ω Rotary Potentiometer

KYOCERA/AVX 3104601739 is a wire-wound, mono rotary potentiometer designed for precise resistance adjustments in electronic circuits. This component features a robust power rating of 4 watts and a nominal resistance of 10 ohms, making it suitable for applications requiring reliable control of current flow. As a slide potentiometer variant, it provides smooth and continuous resistance variation, which is essential in audio equipment for volume control or in instrumentation for calibration tasks. With its durable construction and accurate performance, this potentiometer is commonly utilised in industrial and automotive systems where consistent and repeatable adjustments are critical.

Type	3104601739
Resistance	10Ω
Power Rating	4W
Actuating Force	3.6Ncm
Axle Diameter	6mm
Axle length	50mm
Case Dimensions	24mm
Connection	Solder tag
Content	1
Cut-off Voltage	500V
Diameter	24mm
Dimensions	(Ø x L) 24 mm x 12 mm
Electrical Angle	280°
Impact Tolerance	115Ncm
Length	12mm
Maximum Temperature	+90°C
Mechanical Angle	300°
Minimum Temperature	-40°C
Output	Mono
Product Type	Wire-wound pot
Resistance characteristic	linear
Temperature Coefficient	400ppm/°C
Thread Length	8mm
Thread Size	M10
Tolerance ±	0.2%
