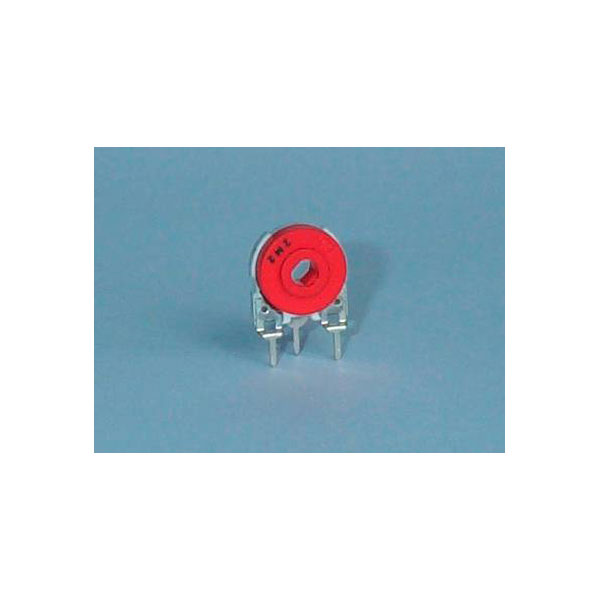

KYOCERA/AVX 2041452305 Cermet trimmer linear 1W 220kΩ 240° 270° 1pc

KYOCERA/AVX 2041452305 is a cermet trimmer with a linear operation, offering a power rating of 1 watt and a resistance value of 220 kilohms. This trimmer features an adjustment range of 240° to 270°, providing a precise and reliable solution for fine-tuning resistance in electronic circuits. Benefitting from high stability and accuracy, this product, also referred to as part number 2827007, is typically employed in calibration circuits, signal conditioning, and tuning applications in various industrial, automotive, and consumer electronics. Its robust construction ensures durability and consistent performance under a wide range of operating conditions.

Resistance	220kΩ
Power Rating	1W
Connection	Pins
Content	1
Cross Section	5mm
Cut-off Voltage	300V
Dimensions	(L x W x H) 7 x 15 x 12.5 mm
Electrical Angle	240°
Height	12.5mm
Length	7mm
Maximum Temperature	+90°C
Mechanical Angle	270°
Minimum Temperature	-40°C
Operation type	side
Outside Diameter	15mm
Product Type	Cermet trimmer
Resistance characteristic	linear
Tolerance ±	0.2%
Width	15mm
