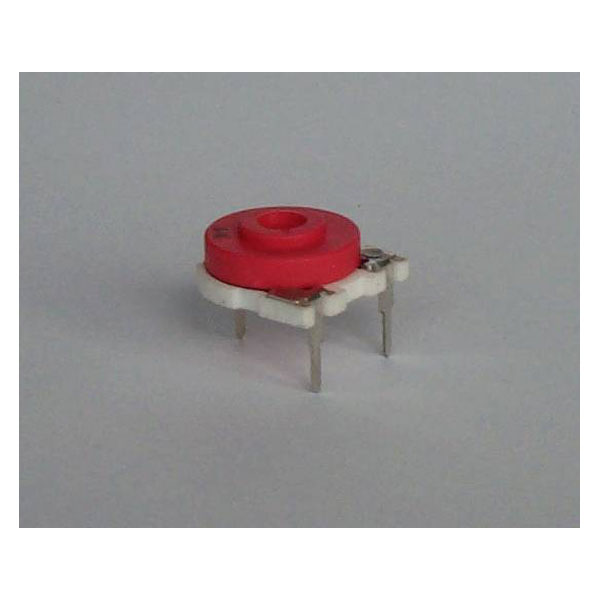

KYOCERA/AVX 2041441755 Cermet trimmer linear 1 W 22 kΩ 240 ° 270 °

KYOCERA/AVX 2041441755 is a cermet trimmer that offers precise resistance adjustments with a linear resistance of 22 kO, featuring a power rating of 1 watt and an adjustable rotation range of 240 to 270 degrees. Designed as a reliable component for fine-tuning in electronic circuits, this trimmer is commonly utilised in applications requiring stable and repeatable performance, such as calibration in test equipment, signal processing, and circuit protection systems. The robust construction and precise adjustability make it suitable for use in both professional and high-performance consumer electronic applications, providing engineers with a dependable and efficient solution for resistance adjustment needs.

Type	Cermet Trimmer
Resistance	22kΩ
Power Rating	1W
Connection	Pins
Content	1
Cross Section	10mm
Cut-off Voltage	300V
Dimensions	(L x W x H) 15 x 15 x 8 mm
Electrical Angle	240°
Height	8mm
Length	15mm
Max. temperature	+90°C
Maximum Temperature	+90°C
Mechanical Angle	270°
Min. temperature	-40°C
Minimum Operating Temperature	-40°C
Operation type	top
Outside Diameter	15mm
Resistance characteristic	linear
Tolerance ±	0.2%
Width	15mm
