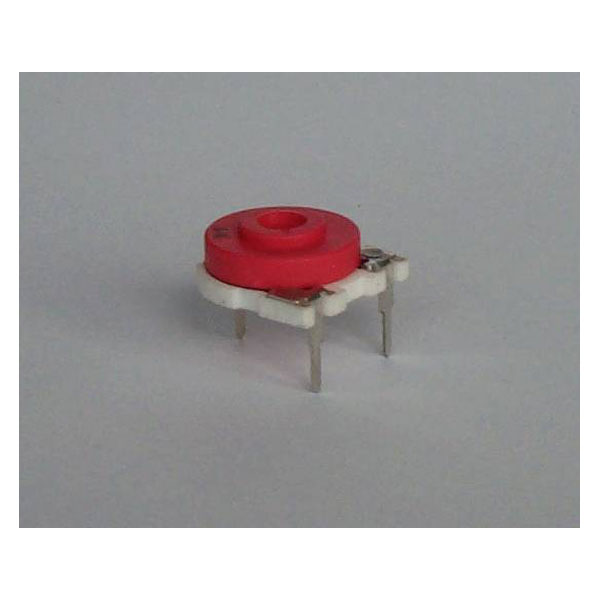

KYOCERA/AVX 2041441507 Cermet trimmer linear 1W 10kΩ 240°-270° 1 piece

KYOCERA/AVX 2041441507 is a cermet trimmer resistor designed for precision electronic applications, particularly where linearity and reliability are critical. This product, also known by its alternate description 2826999, features a resistance value of 10kO and a power rating of 1 watt, making it suitable for a variety of sensitive tuning and calibration tasks. The trimmer offers an adjustment range between 240 and 270 degrees, allowing for fine control in circuit design and signal processing applications. It is particularly well-suited for use in instrumentation, telecommunications, and industrial control systems, offering engineers the accuracy and durability required for demanding environments.

Type	Cermet Trimmer
Resistance	10kΩ
Power Rating	1W
Connection	Pins
Content	1
Cross Section	10mm
Cut-off Voltage	300V
Dimensions	(L x W x H) 15 x 15 x 8 mm
Electrical Angle	240°
Height	8mm
Length	15mm
Max. temperature	+90°C
Maximum Temperature	+90°C
Mechanical Angle	270°
Min. temperature	-40°C
Minimum Operating Temperature	-40°C
Operation type	top
Outside Diameter	15mm
Resistance characteristic	linear
Tolerance ±	0.2%
Width	15mm
