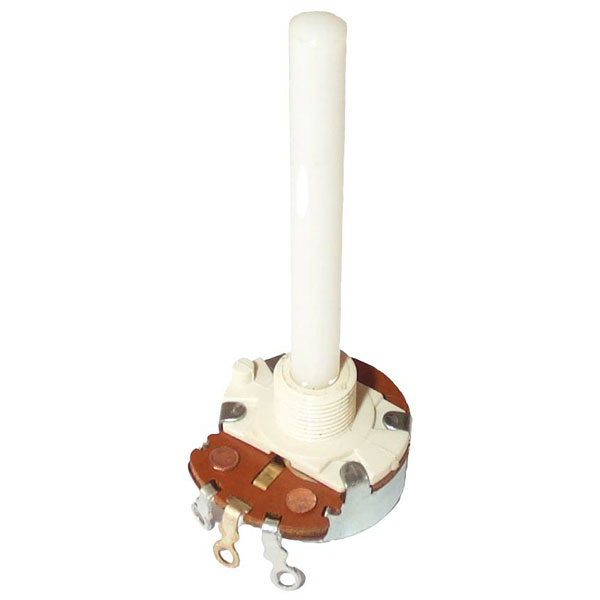

KYOCERA/AVX 104706003 Single turn Rotary Potentiometer 0.5 W 500 kΩ

KYOCERA/AVX 104706003 is a single turn rotary potentiometer designed with precision for electronic applications requiring linear resistance adjustment. This component features a resistance rating of 500 kO and can handle a power dissipation of up to 0.5 watts, making it suitable for medium power level applications. As part of the slide potentiometer category, it enables smooth and reliable resistance variation through its rotary mechanism, ensuring precise control in circuit tuning processes. With its robust design, this potentiometer is typically employed in audio equipment, instrumentation, and control systems where accurate control of electrical parameters is essential. Its construction and performance characteristics make it a versatile choice for engineers focused on designing reliable and efficient electronic systems.

Type	10,000 cycles
Resistance	500kΩ
Power Rating	0.5W
Actuating Force	3.6Ncm
Axle Diameter	6mm
Axle length	50mm
Case Dimensions	24mm
Connection	Solder tag
Content	1
Cut-off Voltage	500V
Diameter	24mm
Dimensions	(Ø x L) 24 mm x 11.5 mm
Electrical Angle	270°
Impact Tolerance	113Ncm
Insulation Resistance	1500V
Length	11.5mm
Maximum Temperature	+70°C
Mechanical Angle	320°
Minimum Temperature	-25°C
Output	Mono
Product Type	Single turn rotary pot
Resistance characteristic	linear
Temperature Coefficient	500ppm/°C
Thread Length	8mm
Thread Size	M10
Tolerance ±	0.2%
