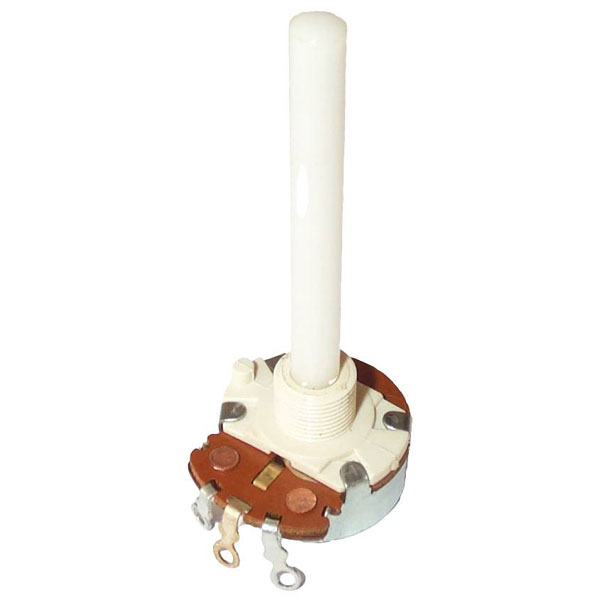

KYOCERA/AVX 104705674 Single turn Rotary Potentiometer 0.5 W 250 kΩ

KYOCERA/AVX 104705674 represents a high-quality single turn rotary potentiometer with a power rating of 0.5 watts and a resistance value of 250 kO. As a member of the slide potentiometer family, this component is designed to offer precision and reliability in adjusting electrical parameters via its rotary motion. The device is mono-channel and suitable for use in a wide range of applications, including audio equipment, instrumentation dashboards, and control systems, where precise control and smooth operation are paramount. Known for its durability and consistency, this potentiometer is a critical component in both consumer and industrial electronic assemblies.

Type	104705674
Resistance	250kO
No of Turns	1
Power Rating	0.5W
Actuating Force	3.6Ncm
Axle Diameter	6mm
Case Dimensions	24mm
Connection	Solder tag
Content	1
Cut-off Voltage	500V
Diameter	24mm
Dimensions	(Ø x L) 24 mm x 11.5 mm
Electrical Angle	270°
Impact Tolerance	113Ncm
Length	11.5mm
Lever Length	50mm
Maximum Temperature	+70°C
Mechanical Angle	320°
Minimum Temperature	-25°C
Output	Mono
Product Type	Single turn rotary pot
Resistance characteristic	linear
Temperature Coefficient	500ppm/°C
Thread Length	8mm
Thread Size	M10
Tolerance ±	0.2%
