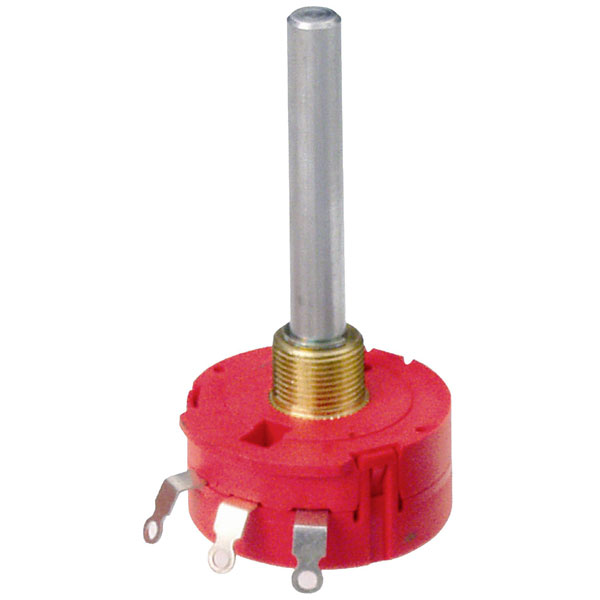

KYOCERA 3114307592 Wire-wound pot Mono 2 W 5 kΩ Rotary Potentiometers

KYOCERA/AVX 3114307592 is a wire-wound mono rotary potentiometer engineered for precision applications, offering a resistance of 5 kO and capable of handling a power rating of 2 W. Classified as a slide potentiometer, this component is designed for use in various electronic circuits where precise control of resistance is necessary, such as in audio equipment, industrial control systems, and measurement instruments. Manufactured with high-quality materials, the Kyocera 3114307592 ensures reliable performance and durability, making it an ideal choice for applications requiring stable and repeatable resistance adjustments.

Type	3114307592
Resistance	5kΩ
Power Rating	2W
Actuating Force	2.5Ncm
Axle Diameter	6mm
Case Dimensions	28.5mm
Connection	Solder tag
Content	1
Cut-off Voltage	300V
Diameter	28.5mm
Dimensions	(Ø x L) 28.5 mm x 15 mm
Electrical Angle	270°
Impact Tolerance	100Ncm
Length	15mm
Lever Length	16mm
Max. temperature	+90°C
Maximum Temperature	+90°C
Mechanical Angle	300°
Min. temperature	-40°C
Minimum Operating Temperature	-40°C
Output	Mono
Product Type	Wire-wound pot
Resistance characteristic	linear
Thread Length	10mm
Thread Size	M10
Tolerance ±	0.1%
