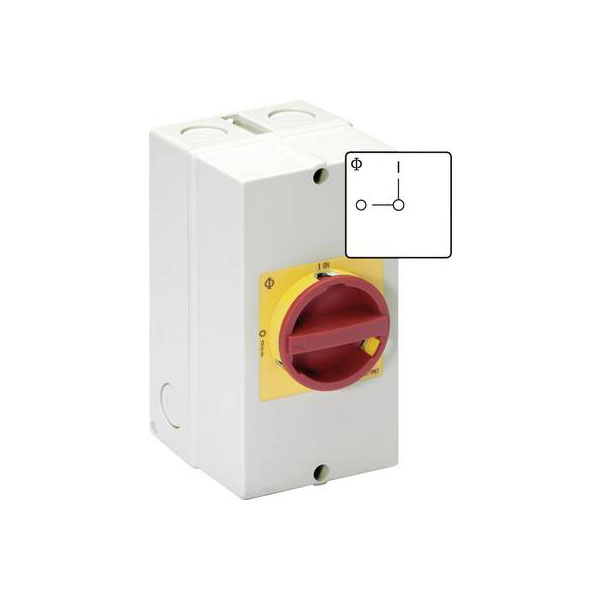

Kraus & Naimer KG32B.T206/40.KL11V Mains Switch Red/Yellow Lockable 32A

The Kraus & Naimer disconnector KG32B.T206/40.KL11V is a lockable switch rated at 32 A. It features a 1 x 90° operation with a red and yellow colour scheme for enhanced visibility and safety. This disconnector is typically used for electrical isolation in industrial or commercial applications.

Type	Disconnector
Connection	Screws
Depth	93mm
Functions	latch
Height	190mm
IP Rating	IP66/IP67
Misc Attribute 1	Lockable in 0 position with a padlock
Mounting Type	Structure
Number of Pins	6
Operation type	EPO rotary switch
Power Rating	11kW
Print motif	0/1
Size/ Dimensions	(W x H x D) 100 x 190 x 93 mm
Switch/button features	Lockable
Switching angle	1 x 90 °
Switching current (max.)	32A
Width	100mm
