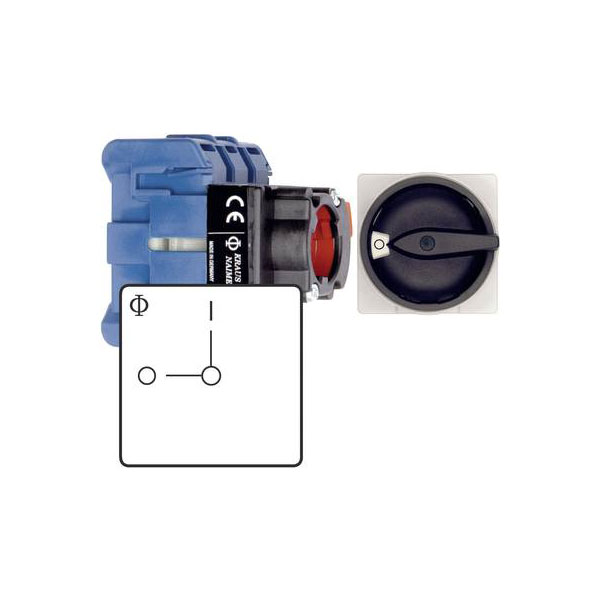

Kraus & Naimer KG20B.T103/01.FT2 Isolator Switch 25A 90° Black

The Kraus & Naimer KG20B.T103/01.FT2 isolator switch is a 25 A, black electrical switch featuring a 90° turn mechanism. This isolator switch is designed for safely disconnecting or isolating electrical circuits, making it ideal for maintenance and emergency purposes. It is commonly used in industrial and commercial electrical installations.

Type	Isolator switch
Casing/button colour	Black
Connection	Plug & Clip
Functions	latch
IP Rating	IP66
Length	64mm
Misc Attribute 1	Quick mounting 22mm
Mounting Type	Centre lock
Operation type	Rotary switch
Power Rating	7.5kW
Print motif	0/I
Recess Diameter	22mm
Size/ Dimensions	(L x W) 64 mm x 64 mm
Switch position	3 x Off/On
Switching angle	1 x 90 °
Switching current (max.)	25A
Width	64mm
