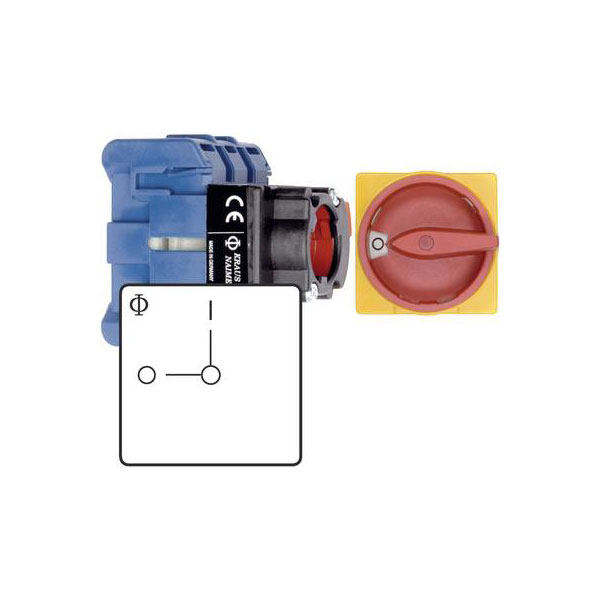

Kraus & Naimer KG10B.T203/01.FT2 Isolator Switch 20A 1x90° Red/Yellow

The Kraus & Naimer KG10B.T203/01.FT2 Isolator switch is a robust device designed for safe electrical disconnection, rated at 20 A. Featuring a distinctive red and yellow 1 x 90° actuator, it ensures easy identification and operation. This isolator switch is typically used in industrial and commercial settings to securely cut off power during maintenance or emergency situations.

Connection	Plug & Clip
Functions	latch
IP Rating	IP66
Length	64mm
Misc Attribute 1	Quick mounting 22mm
Mounting Type	Center lock
Operation type	EPO rotary switch
Power Rating	5.5kW
Print motif	0/I
Recess Diameter	22mm
Size/ Dimensions	(L x W) 64 mm x 64 mm
Switch position	3 x Off/On
Switching angle	1 x 90 °
Switching current (max.)	20A
Type	Isolator switch
Width	64mm
