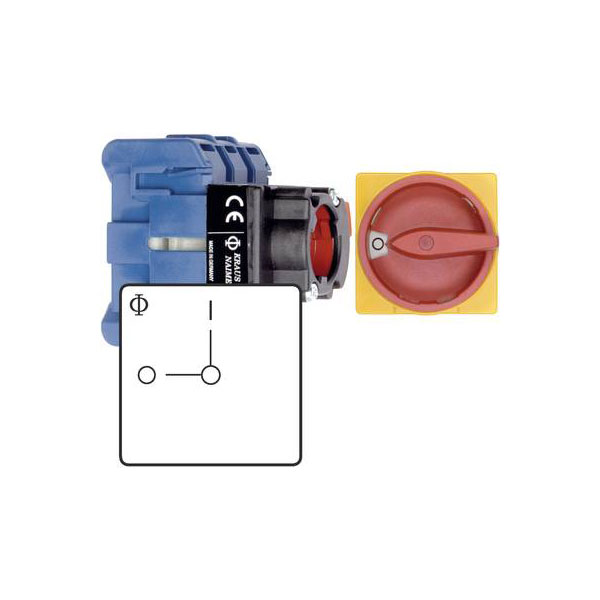

Kraus & Naimer KG10B.T202/01.FT2 Isolator Switch 20A 230V 1x90° Red/Yellow

Kraus & Naimer
Order Code:

12-3369

Brand: Kraus & Naimer MPN: KG10B.T202/01.FT2 EAN-13: 9004257013807
Qty Unit Price (Ex VAT)
1+ £24.06
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
54 available to back orderBack-order availability date - 11/01/2026

Kraus & Naimer's KG10B.T202/01.FT2 isolator switch is a robust electrical component designed for a rated current of 20 A and a voltage of 230 V. The switch features a distinct operation with a 1 x 90° mechanism and comes with a red and yellow colour scheme, ideal for safety and visibility. This switch is commonly used in industrial settings to safely disconnect circuits and ensure machinery maintenance can be carried out without electrical hazards.
Type Isolator switch
Power Rating 1.5kW
Switch Rating 230V
Size/ Dimensions (L x W) 64 mm x 64 mm
IP Rating IP66
Connection Plug & Clip
Functions latch
Length 64mm
Misc Attribute 1 Quick mounting 22 mm
Mounting Type Centre lock
Operation type EPO rotary switch
Print motif 0/I
Recess diameter 22mm
Switch position 2 x Off/On
Switching angle 1 x 90 °
Switching current (max.) 20A
Width 64mm
