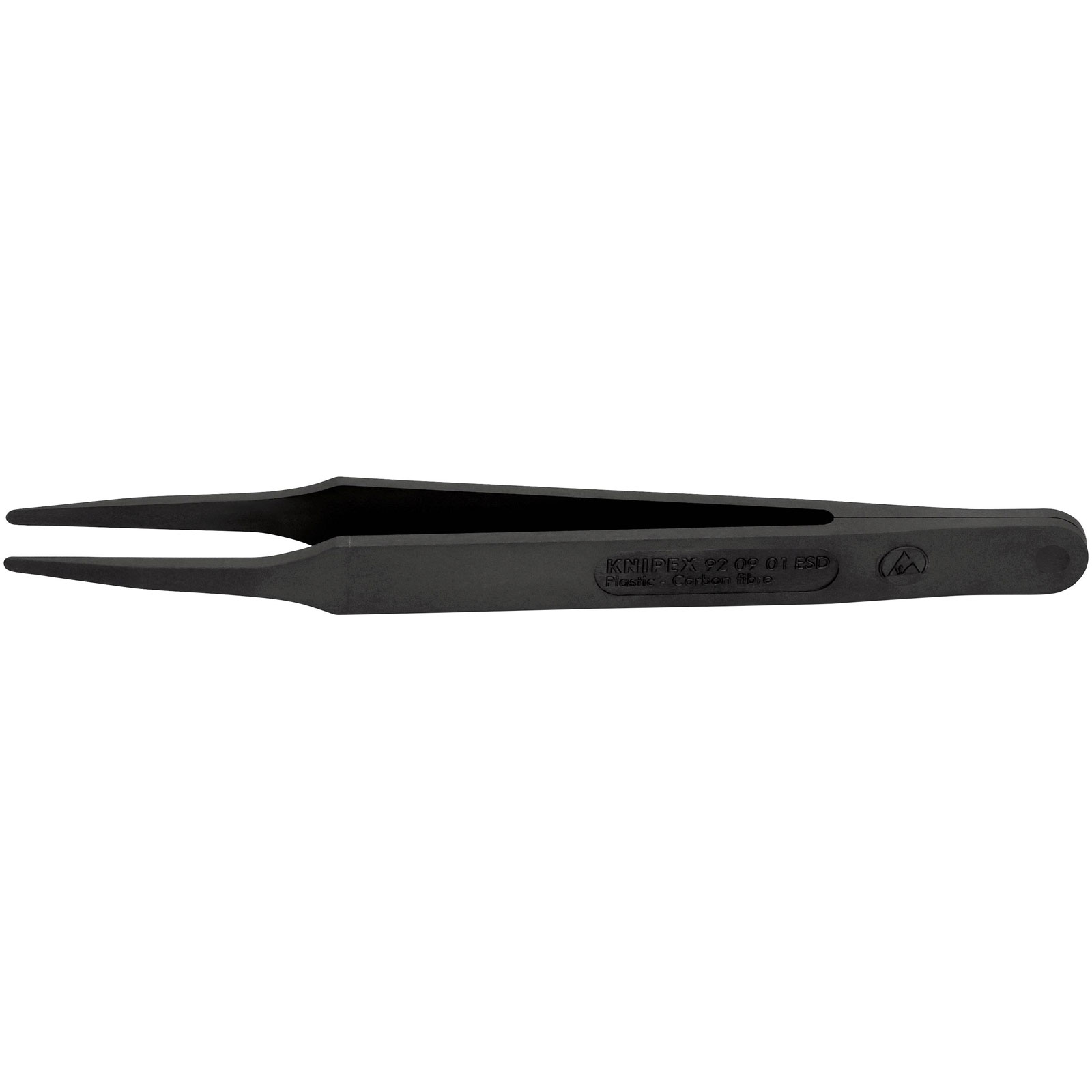

KNIPEX 92 09 01 ESD Plastic Tweezers ESD Smooth 115 mm

92 09 01 ESD Plastic Tweezers ESD
ESD tweezers are made of 30% carbon fibre reinforced plastic, are electrically and thermally highly conductive and are characterised by high resistance to abrasion and scratching. With a surface resistance between 10^2 and 10^4 ohms to compensate in a controlled manner the differences in potential between the operator and the electronic components. ESD plastic tweezers are temperature-stable up to 130° C, short-term use is possible at up to 190° C. The carbon fibre reinforced plastic of the ESD variants is extremely flexible, fatigue-resistant, vibration-reducing and water-repellent, with good chemical resistance to most oils, greases, fuels and nonpolar solvents. ESD plastic tweezers are ideal for maximum surface protection when handling sensitive electronic components, micro-mechanical parts, as well as glass and ceramic components. ESD plastic tweezers: also available as a set (92 00 05 ESD).

Surface: matt finish

Finish: straight

Tips width (A): 0.35 mm

Tips width (B): 2 mm

Tweezers tip version: blunt

Corrosion-resistant: yes

Acid resistance: very good

ESD-tested: yes

VDE tested: no

Sectors: electronics

Magnetic: non-magnetisable (100%)

Behaviour: electrically dissipative

Dim	(L x W) 115 mm x 13 mm
Jaw tip width	2mm
Jaw Width	9.5mm
Length	115mm
Material	Plastic
Misc Attribute	Straight
Range of use	ESD
Tip shape	Blunt
Tip Size	13mm
Type	Tweezers
Weight	4g
Width	13mm
