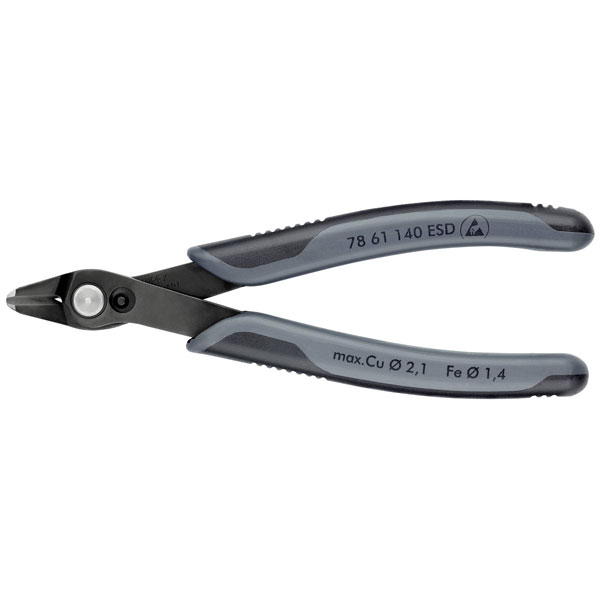

KNIPEX 78 61 140 ESD Electronic Super Knips® XL ESD 140 mm

78 61 140 ESD Electronic Super Knips® XL ESD
Additional 15 mm longer version: greater stability, greater cutting performance. For ultra fine cutting work, e.g. in electronics and fine mechanics. In particular for cutting cable ties to length. Ground, very sharp cutting edges without bevel. Shear cut with controlled micro cutting edge misalignment for the most precise cutting of even the thinnest of wires and for a long service life. Precisely shaped tips cut wires close to a surface from Ø 0.2 mm. Joint with stainless steel rivet. Extremely smooth movement for minimum operator fatigue. With opening spring and opening limiter.

Cutting capacities medium hard wire (diameter): Ø 1.4 mm

Cutting capacities soft wire (diameter): Ø 0.2 – 2.1 mm

Jaw length (B): 12.3 mm

Jaw thickness (joint) (D): 9.2 mm

Head width (A): 15.7 mm

ESD: yes

Type	Print pliers
ESD Safe	Yes
Length	140mm
VDE Safe	No
Bevel	cutting edges without bevel
Cutting capacities soft wire (diameter)	0.2 - 2.1mm
Edge hardness	64HRC
Handles	with multi-component grips
Handles Feature	ESD,
Head	burnished
Head width	15.7mm
Jaw Length	12.3mm
Jaw Thickness	9.2mm
Material	Stainless steel
Material properties	burnished
Range of use	Electrical & precision engineering
Surface	burnished
Weight	77g
