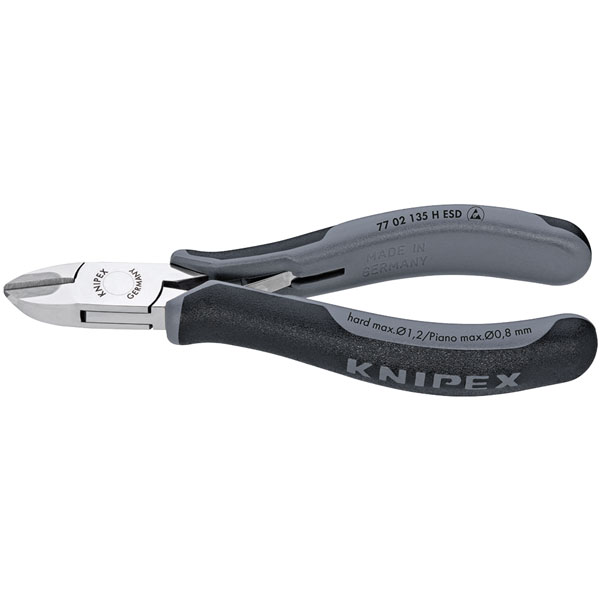

Knipex 77 02 135 H ESD Electronics Diagonal Cutters ESD - Carbide Edges - 130mm

The Knipex 77 02 135 H ESD is an electronics diagonal cutter featuring precision carbide metal cutting edges. It measures 135 x 50 x 20 mm and weighs 115 g. The cutting edges are hardened to 80 – 83 HRC, providing durability for cutting hard materials such as piano, nickel, and tungsten wire. It offers cutting capacities of Ø2.2mm for soft wire, Ø1.6mm for medium hard wire, and Ø1.2mm for hard wire. The tool is compliant with DIN ISO 9654 and DIN EN 61 340-5 standards and features electrically discharging handles with multi-component grips.

• Avoids cutter deformations
• Electrically discharging handles - dissipative
• Head: mirror polished
• Handles: with multi-component grips
• Carbide cutting edges hardness: 80–83 HRC
• Soft wire: Ø 2.2mm; Hard wire: Ø 1.2mm; Piano wire: Ø 0.8mm; Medium hard wire: Ø 1.6mm
• Tip width: 9.5mm; length: 18mm
• Length: 135mm
• Weight: 115g
• DIN ISO 9654
• Manufacturer's part 77 02 135 H ESD

Type	Diagonal side cutters
ESD Safe	Yes
Length	130mm
VDE Safe	No
Bevel	cutting edges with bevel
For Use With	Hard, piano, soft wire
Handles	with multi-component grips
Handles Feature	ESD,
Head	mirror polished
Head width	15mm
Jaw Length	18mm
Jaw Thickness	9.5mm
Joint Design	box joint
Material	Carbide metal
Tip Width	9.5mm; length: 18mm
